Dispersion Compensating Fibre (DCF)

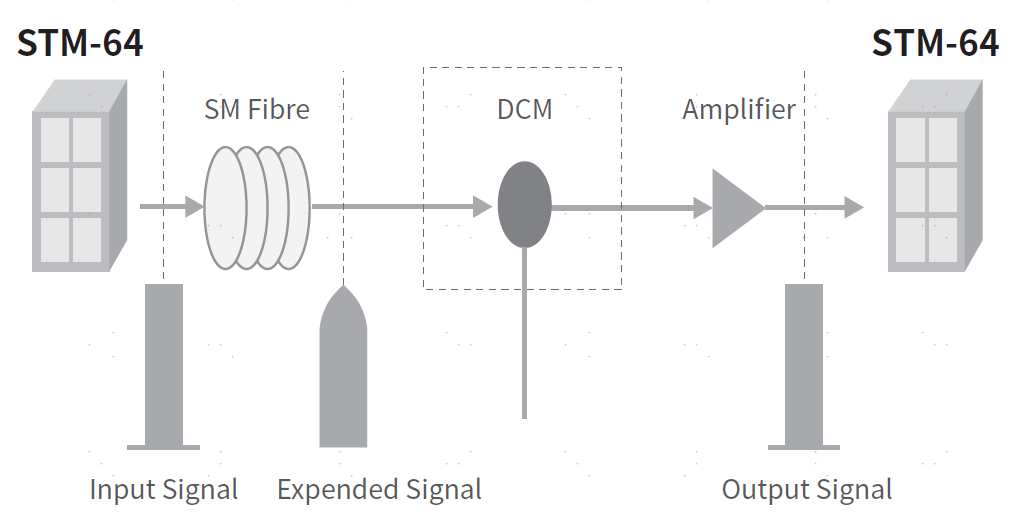

YOFC dispersion compensating fibre is specially developed through proprietary PCVD-based technology. Taking advantages of PCVD process, YOFC is able to manufacture complex index-profile shapes accuratelly, therefore, to get the optimized products with the best compromise between insertion loss and residual dispersion over the compensated working wavelength. Customized fibres with special center wavelength and dispersion are available.
Applications
  • Single mode fibre backbone and metropolitan area networks based on recommendation G.652
  • DWDM networks
  • SDH network
  • CATV
  • Dispersion adjustment
Characteristics
  • Broad band dispersion compensating of DWDM network and extremely low residual dispersion
  • 80-120% slope compensation in C/L band
  • Low insertion loss and high negative dispersion coefficient
  • High figure of merit(FOM)
  • Low PMD
  • Performances meet the criterion Telcordia GR-2854-core
  • Reliability meets the criterion Telcordia GR-1221-core
  • Customized encapsulation type, dimension, connector type and jumper length
  • Good splicing characteristics, spliced by one discharge

Products

Standard Products:

  • DCF for G.652 C band (Part NO. DM1010-D)
  • DCF for G.652 C band (Part NO. DM1010-E)
  • DCF for G.655 C band (Part NO. DM1011-A)
  • DCF for CATV and high FOM(Part No.DM1013-A)

Products Available:

  • Customized DCFs

Specifications

Fibre Type

NDCF-G.652C/250

SNDCF-G.652C/170

DCF-G.655C/250

SDCF-G.652C/170LD

Part No.

DM1010-D

DM1010-E

DM1011-A

DM1013-A

Optical Properties

Operating Wavelength (nm)

1525-1565

1525-1565

1525-1565

1525-1565

MFD (μm)

5.0±1

5.0±1

4.5±1

5.0±1

1525-1565nm Attenuation (dB/km)

≤ 0.55

≤ 0.55

≤ 1.4

≤ 0.6

1545nm Dispersion Coefficient (ps/nm·km)

-100 to -170

-100 to -170

-160 to -360

≤-160

1545nm Relative Dispersion Slope (nm-1)

0.00288 - 0.00432

0.00288 - 0.00432

0.0176 - 0.0264

0.0028 - 0.0044

Geometrical Properties

Cladding Diameter (μm)

120 ± 10

120 ± 10

110 ± 10

120 ± 10

Coating Diameter (μm)

245± 10

175± 15

245± 10

175± 15

Cladding Non-circularity (%)

≤1

≤1

≤1

≤1

Core/Cladding Concentricity Error (%)

≤1

≤1

≤1

≤1

Coating Type

Dual-layer UV-acrylate

Dual-layer UV-acrylate

Dual-layer  UV-acrylate

Dual-layer UV-acrylate
