Ultraviolet Optimized Fibre (UVF)
YOFC Ultraviolet Optimized Fibre is a multimode fibre designed for light source wavelengths in the ultraviolet and near-ultraviolet band. The fibre adopts high hydroxyl content and pure silica structure to ensure the excellent properties of fibre attenuation and optical damage resistance. UV fibres with different geometric sizes and NAs are customized according to different customer application requirements.
Details
Specification
Documents
Applications
Characteristics
- High hydroxyl content
- Step band

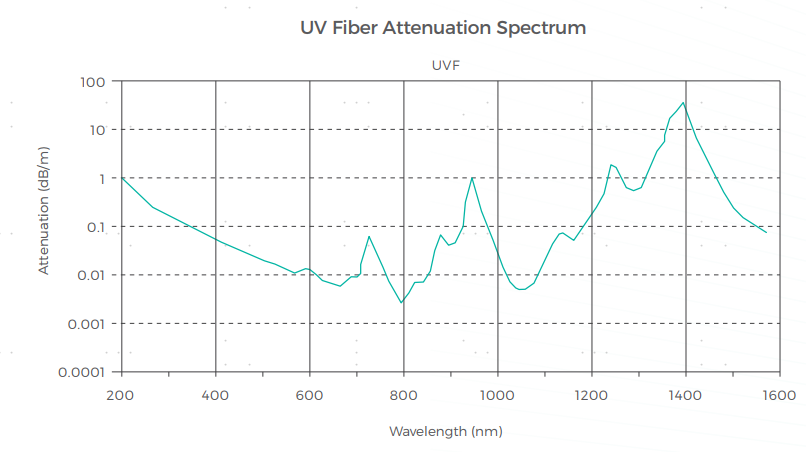

- Low loss for UV band, suitable for medium and low power energy transmission
- High laser damage threshold for UV band, stability of long-term operation
- Customized geometric sizes and NAs
- Customized coating materials
Specifications
- Specifications-1
| Fibre Type |
UV 25/125-12/250 |
UV 34/125-12/250 |
UV 40/80-22/165 |
UV 40/125-22/250 |
|---|---|---|---|---|
| Part No. |
UV2011-A |
UV2012-A |
UV2013-B |
UV2014-B |
| NA |
0.12±0.02 |
0.12±0.02 |
0.22±0.02 |
0.22±0.02 |
| Core Diameter (μm) |
25.0±5.0 |
34.0±5.0 |
40.0±3.0 |
40.0±3.0 |
| Cladding Diameter (μm) |
124.7±1.0 |
124.7±1.0 |
80.0±2.0 |
124.7±1.0 |
| Coating Diameter (μm) |
242.0±5.0 |
242.0±5.0 |
165.0±5.0 |
242.0±5.0 |
| Core/Cladding Concentricity (μm) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Proof Test Level (kpsi) |
≥100 |
≥100 |
≥50 |
≥100 |
| Length (km) |
≤3 |
≤3 |
≤3 |
≤3 |
- Specifications-2
| Fibre Type |
UV 50/125-22/250 |
UV 60/125-12/250 |
UV 60/125-22/250 |
UV 105/125-22/250 |
UV 200/220-22/500 |
UV400/420-22/600 |
|---|---|---|---|---|---|---|
|
Part No. |
UV2015-A |
UV2016-A |
UV2016-B |
UV2017-A |
UV2022-A |
UV2018-A |
|
NA |
0.22±0.02 |
0.12±0.02 |
0.22±0.02 |
0.22±0.02 |
0.22±0.02 |
0.22±0.02 |
|
Core Diameter(μm) |
50.0±2.5 | 60.0±2.5 | 60.0±2.5 | 105.0±3.0 | 200.0±3.0 | 400.0±8.0 |
|
Cladding Diameter(μm) |
124.7±1.0 |
124.7±1.0 |
124.7±1.0 |
124.7±1.0 |
220.0±5.0 |
420.0±10.0 |
|
Coating Diameter(μm) |
242.0±5.0 |
242.0±5.0 |
242.0±5.0 |
242.0±5.0 |
500.0±25.0 |
600.0±20.0 |
| Core/Cladding Concentricity (μm) |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.6 |
≤1.0 |
≤4.0 |
|
Proof Test Level(kpsi) |
≥100 |
≥100 |
≥100 |
≥100 |
≥100 |
≥100 |
|
Length(km) |
≤5 |
≤3 |
≤5 |
≤5 |
≤0.5 |
≤0.2 |
