    iCONEC®Outdoor Fibre Optic Cables iCONEC-OCTQ

    Mainly applied to the connection between outdoor bulidings. It has some mechanical and environmental characteristics such as pressure resistance, tension resistance,corrosion resistance, high temperature and low temperature resistance.

    Applications

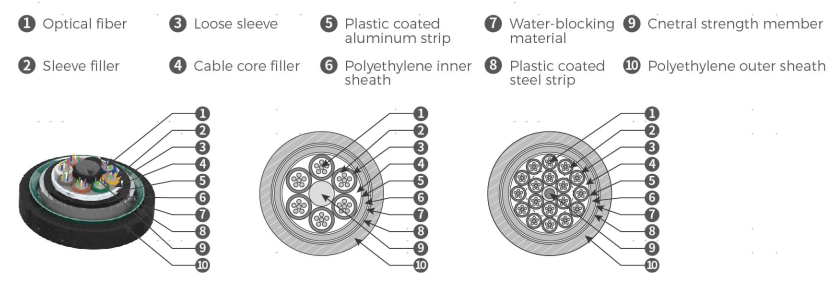

    • The iCONEC-OCTQ fiber optic cable is constructed with a 250µm optical fiber in a loose sleeve made from high-modulus materials and filled with waterproof compound. The center of the cable core is one piece of metal strength member.
    • For fiber optic cables with a certain number of cable cores, a layer of polyethylene (PE)needs to be applied outside the metal strength member. The loose sleeve (and the filling rope) is twisted around the central strength member to form a compact and round cable core whose gaps are filled with water-blocking fillers. Plastic coated aluminum strip (APL) is longitudinally wrapped to form a layer of polyethylene inner sheath through extrusion and double-sided plastic coated steel strip (PSP) is longitudinally wrapped to form polyethylene sheath cable through extrusion.
    Product standards
    • The YOFC iCONEC-OCTQ complies with YD/T 901 and IEC60794-1 standards.
    Characteristics
    • It has good mechanical properties and temperature characteristics.
    • The loose sleeve is made of materials with good hydrolysis resistance and highstrength
    • The pipe is filled with special grease which can protect the optical fiber critically.
    • It has good compression resistance and flexibility;
    • The following measures are adopted to ensure the waterproof performance of fiber optic cables:
      • A single metal central strength member.
      • The loose sleeve is filled with special waterproof compound.
      • Complete filling of core.
      • Moisture-proof layer of the plastic coated aluminum strip (APL).
      • Double-sided coated plastic steel strip (PSP) can improve the moisture resistance of fiber optic cables.
      • With good water-blocking material, it can prevent longitudinal water penetration offiber optic cables.
    Optical Properties

    Fiber Type

    Attenuation (+20°C)

    Bandwidth

    Numerical aperture

    cut off wavelength

    @850nm

    @1300nm

    @1310nm

    @1550nm

    @850nm

    @1300nm

    G.652

    －

    －

    ≤0.36Db/km

    ≤0.22Db/km

    －

    －

    －

    ≤1260nm

    G.655

    －

    －

    ≤0.40Db/km

    ≤0.23Db/km

    －

    －

    －

    ≤1450nm

    50/125µm

    ≤3.3Db/km

    ≤1.2Db/km

    －

    －

    ≥500MHz·km

    ≥500MHz·km

    0.200±0.015 NA

    －

    62.5/125µm

    ≤3.5Db/km

    ≤1.2Db/km

    －

    －

    ≥200MHz·km

    ≥500MHz·km

    0.275±0.015 NA

    －
    Structural Parameters

    Optical cable model (Increment by 2 fibers)

    Fiber count

    Sleeve count

    Filling rope count

    Reference cable weight (kg/km)

    Outer diameter (mm)

    Tensile strength for long/short

    term (N)

    Crush resistance for long/short term (N/100mm)

    Bending radius

    iCONEC-OCTQ002-006

    2-6

    1

    5

    177

    14.9

    1000/3000

    1000/3000

    12.5D/25D

    iCONEC-OCTQ008-012

    8-12

    2

    4

    177

    14.9

    iCONEC-OCTQ014-018

    14-18

    3

    3

    177

    14.9

    iCONEC-OCTQ020-024

    20-24

    4

    2

    177

    14.9

    iCONEC-OCTQ026-030

    26-30

    5

    1

    177

    14.9

    iCONEC-OCTQ032-036

    32-36

    6

    0

    177

    14.9

    iCONEC-OCTQ038-048

    38-48

    4

    1

    194

    14.9

    iCONEC-OCTQ050-060

    50-60

    5

    0

    194

    15.2

    iCONEC-OCTQ062-072

    62-72

    6

    0

    204

    15.2

    iCONEC-OCTQ074-084

    74-84

    7

    1

    239

    15.2

    iCONEC-OCTQ086-096

    86-96

    8

    0

    239

    15.2

    iCONEC-OCTQ098-108

    98-108

    9

    1

    275

    17.1

    iCONEC-OCTQ110-120

    110-120

    10

    0

    275

    17.1

    iCONEC-OCTQ122-132

    110-132

    11

    1

    312

    18.4

    iCONEC-OCTQ134-144

    134-144

    12

    0

    312

    18.4

    iCONEC-OCTQ146-216

    146-216

    13-18

    5-0

    312

    /
    Product Model

    Product Model

    Product Description

    iCONEC-OCTQ***S

    * Core single-mode loose sleeve layer-stranding reinforced armored fiber cable, G.652.D, 9/125µm

    iCONEC-OCTQ***E

    * Core single-mode loose sleeve layer-stranding reinforced armored fiber cable, G.657.A2, 9/125µm

    iCONEC-OCTQ***F

    * Core single-mode loose sleeve layer-stranding reinforced armored fiber cable, G.657.B3, 9/125µm

    iCONEC-OCTQ***M

    * Core multimode loose sleeve layer-stranding reinforced armored fiber cable, OM1, 62.5/125µm

    iCONEC-OCTQ***B

    *Core multimode loose sleeve layer-stranding reinforced armored fiber cable, OM2, 50/125µm

    iCONEC-OCTQ***A

    *Core multimode loose sleeve layer-stranding reinforced armored fiber cable, OM3, 50/125µm

    iCONEC-OCTQ***N

    *Core multimode loose sleeve layer-stranding reinforced armored fiber cable, OM4, 50/125µm

    iCONEC-OCTQ***D

    *Core multimode loose sleeve layer-stranding reinforced armored fiber cable, OM5, 50/125µm
    • Remarks: In the product model, *** represents 3 digits. For example, the 2-core optical cable is 002.
    • Storage and operating temperature: -40°C to +70°C.
    • Applicable to: Pipeline, overhead
