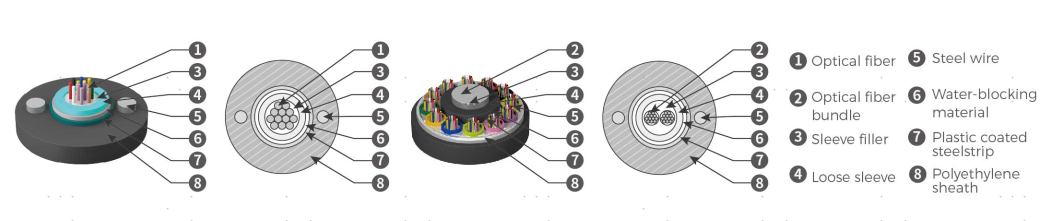

- The iCONEC-OCCK fiber optic cable is constructed with a 250µm optical fiber in a loose sleeve made from high-modulus materials and filled with waterproof compound.
- The loose sleeveLoose tube is longitudinally wrapped with a double-sided plastic-coated steel strip (PSP). The water-blocking material between the steel strip and the loose sleeve is added to ensure the compact and longitudinal water-blocking of the optical cable. Two parallel steel wires are placed on both sides, and then the polyethylene sheath is extruded to form a cable.
iCONEC®Outdoor Fibre Optic Cables iCONEC-OCCK
Mainly applied to the connection between outdoor bulidings. It has some mechanical and environmental characteristics such as pressure resistance, tension resistance, corrosion resistance, high temperature and low temperature resistance.
Details
Applications
Product standards
- The YOFC iCONEC-OCCK complies with YD/T 769 standards.
Characteristics
- It has good mechanical properties and temperature characteristics.
- The loose sleeve is made of materials with good hydrolysis resistance and high strength.
- The pipe is filled with special grease which can protect the optical fiber critically.
- It has good compression resistance and flexibility.
- Double-sided coated plastic steel strip (PSP) can improve the moisture resistance of fiber optic cables.
- Two parallel steel wires ensure the tensile strength of the fiber optic cables.
- Small diameter, lightweight, easy to lay.
- Longer delivery length.
Optical Properties
|
Fiber Type |
Attenuation （+20℃） |
Bandwidth |
Numerical aperture |
cut off wavelength |
||||
|---|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
|||
|
G.652 |
－ |
－ |
≤0.36Db/km |
≤0.22Db/km |
－ |
－ |
－ |
≤1260nm |
|
G.655 |
－ |
－ |
≤0.40Db/km |
≤0.23Db/km |
－ |
－ |
－ |
≤1450nm |
|
50/125µm |
≤3.3Db/km |
≤1.2Db/km |
－ |
－ |
≥500MHz·km |
≥500MHz·km |
0.200±0.015 NA |
－ |
|
62.5/125µm |
≤3.5Db/km |
≤1.2Db/km |
－ |
－ |
≥200MHz·km |
≥500MHz·km |
0.275±0.015 NA |
－ |
Structural Parameters
|
Optical cable model (Increment by 2 fibers) |
Fiber count |
Reference cable weight (kg/km) |
Outer diameter (mm) |
Tensile strength for long/short term (N) |
Crush resistance for long/short term (N/100mm) |
Bending radius |
|---|---|---|---|---|---|---|
|
iCONEC-OCCK002-012 |
2-12 |
82 |
8.7 |
600/1500 |
300/1000 |
10D/20D |
|
iCONEC-OCCK014-024 |
14-24 |
127 |
11.5 |
|||
|
iCONEC-OCCK002-012 |
2-12 |
124 |
10.6 |
1000/3000 |
||
|
iCONEC-OCCK014-024 |
14-24 |
147 |
12 |
Product Model
|
Product Model |
Product Description |
|---|---|
|
iCONEC-OCCK***S |
* Core single-mode center tube type lightly armored fiber cable, G.652.D, 9/125µm |
|
iCONEC-OCCK***E |
* Core single-mode center tube type lightly armored fiber cable, G.657.A2, 9/125µm |
|
iCONEC-OCCK***F |
* Core single-mode center tube type lightly armored fiber cable, G.657.B3, 9/125µm |
|
iCONEC-OCCK***M |
* Core multimode center tube type lightly armored fiber cable, OM1, 62.5/125µm |
|
iCONEC-OCCK***B |
*Core multimode center tube type lightly armored fiber cable, OM2, 50/125µm |
|
iCONEC-OCCK***A |
*Core multimode center tube type lightly armored fiber cable, OM3, 50/125µm |
|
iCONEC-OCCK***N |
*Core multimode center tube type lightly armored fiber cable, OM4, 50/125µm |
|
iCONEC-OCCK***D |
*Core multimode center tube type lightly armored fiber cable, OM5, 50/125µm |
- Remarks: In the product model, *** represents 3 digits. For example, the 2-core optical cable is 002.
- Storage and operating temperature: -40°C to +70°C.
- Applicable to: Pipeline, overhead
