1/2" -50 Soldered and Molded Jumper Cable

Details

Documents

Connector Type

Cable Type

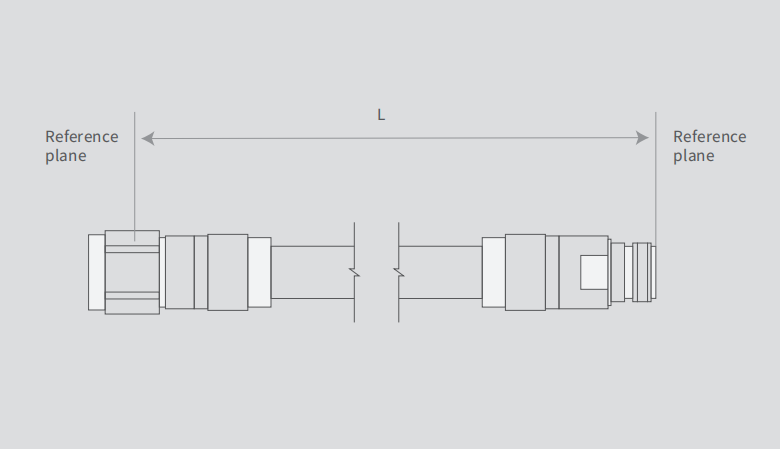

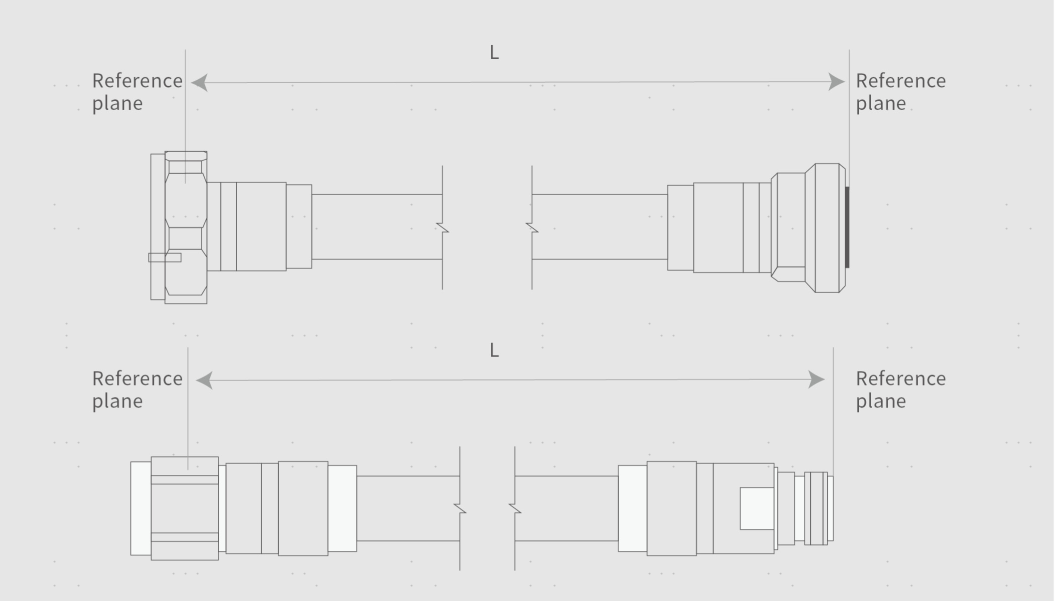

Length

Standard length: 0.5, 1.0, 1.5, 2.0, 2.5 and 3m, Other lengths available on request

Electrical Characteristics at +20℃

Characteristic Impedance	50 ± 1Ω
Return Loss (VSWR) for
0-2200MHz	26.5dB (1.10)
2200-3700MHz	23.0dB (1.15)
Attenuation at (Cable)
-800 MHz	0.11dB/m
-900 MHz	0.11dB/m
-1800 MHz	0.17dB/m
-2000 MHz	0.18dB/m
-2400 MHz	0.20dB/m
-2700 MHz	0.21dB/m
-3600 MHz	0.25dB/m
Connector Attenuation (2pcs)	≤0.1dB
Maximum Operating Frequency	3700MHz
Average Power Rating
-1000 MHz	710W
-2000MHz	480W
Peak RF Voltage Rating	1.39KV
Intermodulation, typical (2×20W TX)	-155dBc

Materials in Connectors

	Outer Conductor	Inner Conductor	Other Metallic Parts	Insulation	Sealing
7/16 Male and N Male	Copper Alloy / Alloy Plated	Copper Alloy / Silver Plated	Copper Alloy/Nickel Plated	PTFE	Silicon
7/16 Female and N Female	Copper Alloy / Alloy Plated	Copper Alloy / Silver Plated	—	PTFE	—
4.3/10 Male	Copper Alloy / Alloy Plated	Copper Alloy / Silver Plated	Copper Alloy/Nickel Plated	PTFE	Silicon

Mechanical Characteristics

Maximum Pulling Force	Single Bending	Repeated Bending	Operating Temperature Range	Crush Resistance
300N	17 mm	55 mm	-55℃ to +80℃	19N/mm

Jacketing Options

Jacket	IEC60754-1/-2 halogen free, noncorrosive	IEC61034 low smoke emission	IEC60332-1/3C ﬁre retardant	Min. installation temperature
Black polyethylene	Yes	_	_	-40℃
Black halogen free ﬁre retardant thermoplastic	Yes	Yes	Yes	-20℃

Jacket

IEC60754-1/-2 halogen free, noncorrosive

IEC61034

low smoke emission

IEC60332-1/3C

ﬁre retardant

Min. installation

temperature

Black polyethylene

Yes

-40℃

Black halogen free ﬁre retardant thermoplastic

Yes

-20℃
