Cable Type: HLRCTCYZ-50-22HK

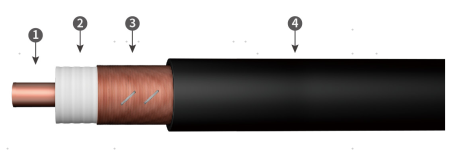

1 Smooth Copper Tube
2 Foamed PE Dielectric
3 Longitudinally Wrapped Copper Strip
4 PE Jacket or LSZH
|
Characteristic Impedance |
Velocity |
Capacitance |
Insulation Resistance |
Insulation Voltage |
Jacket Spark Test Voltage |
|---|---|---|---|---|---|
|
50 ± 2 Ω |
0.88 |
76 pF/m |
＞5000 MΩ.km |
10000 V |
8000 V |
|
Frequency (MHz) |
698-960 |
1700-1900 |
1920-2025 |
2110-2200 |
2300-2400 |
2515-2670 |
3300-3700 |
|---|---|---|---|---|---|---|---|
|
VSWR (Max) |
1.30 |
1.40 |
|||||
|
|
Frequency (MHz) |
Attenuation dB/100m(+20℃) |
Coupling Loss (95%) dB |
|---|---|---|---|
|
HK Band |
700 |
3.6 |
84 |
|
800 |
3.8 |
82 |
|
|
900 |
4.1 |
80 |
|
|
1800 |
6.5 |
74 |
|
|
1900 |
6.8 |
74 |
|
|
2000 |
7.2 |
73 |
|
|
2200 |
7.4 |
72 |
|
|
2400 |
8.1 |
72 |
|
|
2600 |
8.6 |
70 |
|
|
2700 |
9.0 |
70 |
|
|
3300 |
10.9 |
70 |
|
|
3400 |
11.3 |
70 |
|
|
3500 |
12.0 |
70 |
|
|
3600 |
12.7 |
70 |
|
|
3700 |
14.0 |
74 |
|
Weight |
Maximum Pulling Force |
Single Bending |
Repeated Bending |
Operating Temperature Range |
Installation Temperature Range |
|---|---|---|---|---|---|
|
500kg/km |
1300N |
250 mm |
300 mm |
-40℃ to +70℃ |
PE: -40℃ LSZH: -20℃ |
|
|
Inner |
Dielectric | Outer Conductor |
Jacket |
|---|---|---|---|---|
| 7/8" Radiating Type Leaky Coaxial Cable（M/H Band） |
9.0 mm |
23.2 mm |
23.5 mm |
27.5 mm |
| 7/8" Radiating Type Leaky Coaxial Cable（HK Band） |
9.0 mm |
23.2 mm |
23.5 mm |
27.5 mm |
| 1/2" Radiating Type Leaky Coaxial Cable（H Band） |
4.8 mm |
12.2 mm |
13.2 mm |
15.8 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（M/HBand） |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（HK Band） |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1 1/4”Radiating Type Leaky Coaxial Cable (L Band) |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1/2" Radiating Type Le akage Cable For Coal Mine |
4.8 mm |
12.5 mm |
13.1 mm |
15.6 mm |
| 7/8" Radiating Type Leakage Cable For Coal Mine |
9.0 mm |
22.8 mm |
23.5 mm |
27.2 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable (Horizontal polarization) |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Z Band) |
17.6 mm |
43.0 mm |
43.6 mm |
47.5 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable |
17.6 mm |
43.0 mm |
43.6 mm |
47.5 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Train System Ⅲ Type) |
17.6 mm |
43.0 mm |
43.6 mm |
47.5 mm |
