Power Splitter

Technical Data

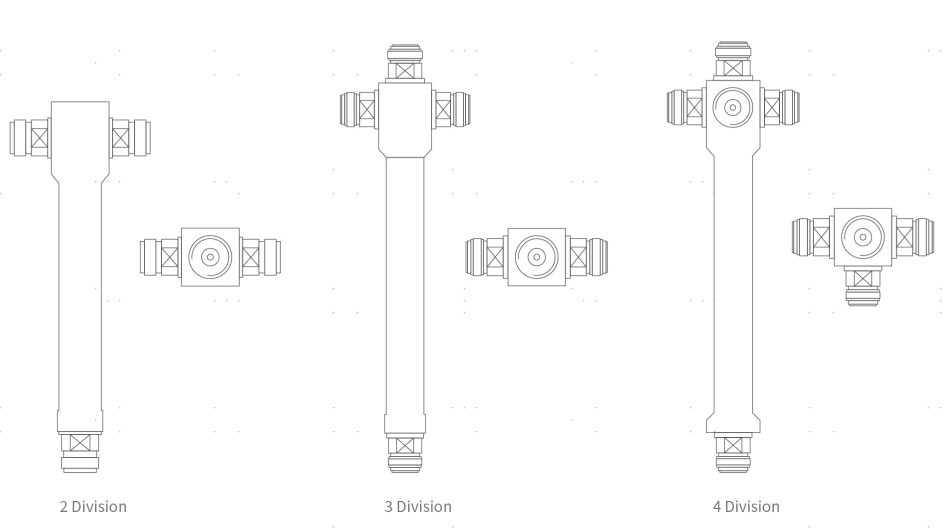

Name

2 Division

3 Division

4 Division

Frequency Band

700MHz-3700MHz

VSWR

≤1.3

≤1.25

≤1.3

≤1.25

≤1.3

≤1.25

Insertion Loss (dB)

≤3.3

≤5.2

≤6.5

Inside Band Fluctuation (dB)

≤0.3

≤0.43

≤0.48/0.5

Connector Type

DIN-F

N-F

DIN-F

N-F

DIN-F

N-F

PIM3 (dBc)

≤-150

≤-140

≤-150

≤-140

≤-150

≤-140

PIM5 (dBc)

≤-160

≤-155

≤-160

≤-155

≤-160

≤-155

Average Power Rating(W)

500

300

500

300

500

300

Temperature

-40 to +55℃

Water Proof

IP65

Impedance (Ohm)

50
