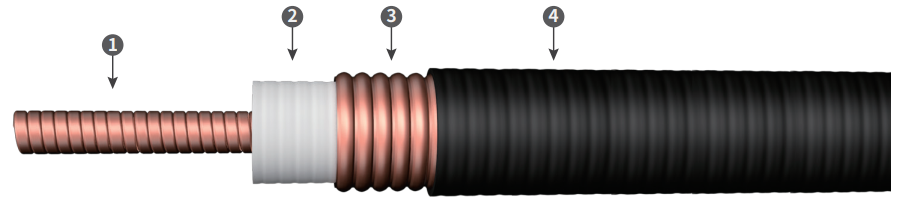

Cable Type: RFA 1 5/8”-50(BHF) HHTAY(Z)-50-42
1 Corrugated Cu-tube
2 Foamed PE Dielectric
3 Ring Corrugated Cu-tube
4 PE Jacket or LSZH
|
Characteristic impedance |
50 ± 1Ω |
|---|---|
|
Return loss for |
|
| 320 ‒ 480 MHz | As specified by customer |
|
700 ‒ 960 MHz |
As specified by customer |
|
1700 ‒ 1880 MHz |
As specified by customer |
|
1880 ‒ 2180 MHz |
As specified by customer |
|
2300 ‒ 2700 MHz |
As specified by customer |
|
Other bands also available on request |
|
| Attenuation | See table |
|
Velocity factor |
0.88 |
|
Capacitance |
76 pF/m |
|
Maximum frequency |
2800 MHz |
|
Max power rating |
See table |
|
Peak RF voltage rating |
5.6 kV |
|
Peak power rating |
314 kW |
|
Frequency(MHz) |
10 |
30 |
50 |
100 |
200 |
300 |
400 |
450 |
500 |
600 |
700 |
800 |
850 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Attenuation Ambient temperature +20℃dB/100m |
Typical |
0.197 |
0.346 |
0.452 |
0.653 |
0.950 |
1.19 |
1.40 |
1.49 |
1.59 |
1.76 |
1.93 |
2.08 |
2.16 |
| Power rating ambient +40℃ inner conductor +100℃KW |
57 |
32 |
25 |
17 |
12 |
9.3 |
7.9 |
7.4 |
7.0 |
6.2 |
5.7 |
5.3 |
5.1 |
|
|
Frequency(MHz) |
900 |
950 |
1000 |
1200 |
1400 |
1600 |
1800 |
1900 |
2000 |
2200 |
2400 |
2600 |
2800 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Attenuation Ambient temperature +20℃dB/100m |
Typical |
2.23 |
2.30 |
2.38 |
2.65 |
2.91 |
3.16 |
3.40 |
3.51 |
3.63 |
3.85 |
4.07 |
4.28 |
4.50 |
| Power rating ambient +40℃ inner conductor +100℃KW |
4.9 |
4.8 |
4.6 |
4.1 |
3.8 |
3.5 |
3.2 |
3.1 |
3.0 |
2.8 |
2.7 |
2.5 |
2.4 |
|
|
Weight |
Crush |
Maximum Pulling Force |
Single Bending |
Repeated Bending |
Operating Temperature Range |
Min. installation temperatur |
|---|---|---|---|---|---|---|
|
1160kg/km |
20N/mm |
3000N |
250 mm |
500 mm |
-55℃ to +80℃ |
See Jacketing Options |
|
Type |
Jacket |
IEC60754-1/-2 halogenfree, noncorrosiven |
IEC61034 low smoke emission |
IEC60332-1/3C fire retardant |
Min. installation temperature |
|---|---|---|---|---|---|
|
HHTAY-50-42 |
Black polyethylene |
Yes |
No |
No |
-40℃ |
|
HHTAYZ-50-42 |
Black halogen free fire retardant thermoplastic |
Yes |
Yes |
Yes |
-20℃ |
|
|
Inner Conductor |
Dielectric |
Outer Conductor |
Jacket |
|---|---|---|---|---|
|
RF 1/2" RF Coaxial Cable |
4.80mm |
12.10mm |
13.90mm |
16.00mm |
|
RFF 1/2" Superflexible RF Coaxial Cable |
3.55mm |
9.00mm |
11.90mm |
13.50mm |
|
RFF 1/3" Superflexible RF Coaxial Cable |
2.65mm |
6.80mm |
7.60mm |
8.80mm |
|
RF 7/8" RF Coaxial Cable |
9.00mm |
22.20mm |
24.90mm |
27.50mm |
|
RFA 7/8" RF Coaxial Cable |
9.40mm |
22.50mm |
25.40mm |
27.80mm |
|
RFA 1 1/4" RF Coaxial Cable |
13.00mm |
32.20mm |
35.80mm |
39.00mm |
|
RFA 1 5/8" RF Coaxial Cable |
17.60mm |
42.20mm |
46.30mm |
50.00mm |
