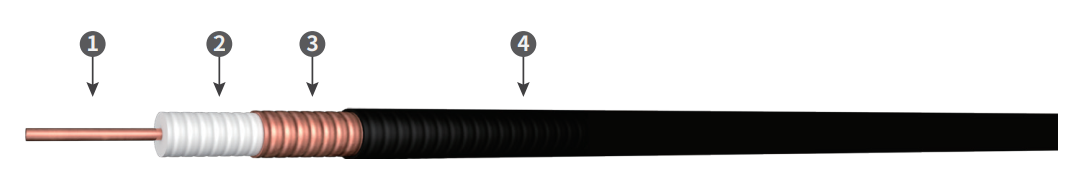

Cable Type: RF 1/2"-50(BHF) HCAAY(Z)-50-12
1 CCA
2 Foamed PE Dielectric
3 Ring Corrugated Cu-tube
4 PE Jacket or LSZH
.png)
RF 1/2" RF Coaxial Cable
Details
Specification
Documents
Cable Type
Electrical Characteristics at +20℃
|
Characteristic Impedance |
50 ± 1Ω |
|---|---|
|
Return Loss for |
|
| 320 ‒ 480 MHz | As specified by customer |
|
700 ‒ 960 MHz |
As specified by customer |
|
1700 ‒ 1880 MHz |
As specified by customer |
|
1880 ‒ 2180 MHz |
As specified by customer |
|
2300 ‒ 3000 MHz |
As specified by customer |
|
3300 ‒ 3700 MHz |
As specified by customer |
|
4800 ‒ 5000 MHz |
As specified by customer |
|
Other Bands Also Available on Request |
|
| Attenuation | See table |
|
Velocity factor |
0.88 |
|
Capacitance |
76 pF/m |
|
Maximum frequency |
9800 MHz |
|
Max power rating |
See table |
|
Peak RF voltage rating |
1.8 kV |
|
Peak power rating |
25.9 kW |
Attenuation and Power Rating
|
Frequency(MHz) |
10 |
30 |
50 |
100 |
200 |
300 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
950 |
1000 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Attenuation |
Typical |
0.669 |
1.17 |
1.51 |
2.16 |
3.09 |
3.83 |
4.45 |
4.74 |
5.01 |
5.53 |
6.01 |
6.45 |
6.88 |
7.09 |
7.29 |
|
Power rating |
12 |
6.9 |
5.3 |
3.7 |
2.6 |
2.1 |
1.8 |
1.7 |
1.6 |
1.5 |
1.3 |
1.2 |
1.2 |
1.1 |
1.1 |
|
|
Frequency(MHz) |
1200 |
1400 |
1600 |
1800 |
1900 |
2000 |
2200 |
2400 |
2600 |
2800 |
3000 |
3500 |
4000 |
6000 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Attenuation |
Typical |
8.05 |
8.77 |
9.44 |
10.1 |
10.4 |
10.7 |
11.3 |
11.9 |
12.4 |
12.9 |
13.5 |
14.7 |
15.9 |
20.2 |
|
Power rating |
1.0 |
0.90 |
0.84 |
0.79 |
0.76 |
0.74 |
0.70 |
0.66 |
0.63 |
0.61 |
0.58 |
0.54 |
0.48 |
0.39 |
|
Mechanical Characteristics
|
Weight |
Crush |
Maximum |
Single |
Repeated |
Operating |
Min. installation temperature |
|---|---|---|---|---|---|---|
|
230kg/km |
20N/mm |
1130N |
80 mm |
125 mm |
-55℃ to +80℃ |
See Jacketing Options |
Jacketing Options
|
Type |
Jacket |
IEC60754-1/-2 halogenfree, noncorrosive |
IEC61034 low smoke emission |
IEC60332-1/3C fire retardant |
Min. installation temperature |
|---|---|---|---|---|---|
|
HCAAY-50-12 |
Black polyethylene |
Yes |
No |
No |
-40℃ |
|
HCAAYZ-50-12 |
Black halogen free fire retardant thermoplastic |
Yes |
Yes |
Yes |
-20℃ |
Specifications
|
|
Inner Conductor |
Dielectric |
Outer Conductor |
Jacket |
|---|---|---|---|---|
|
RF 1/2" RF Coaxial Cable |
4.80mm |
12.10mm |
13.90mm |
16.00mm |
|
RFF 1/2" Superflexible RF Coaxial Cable |
3.55mm |
9.00mm |
11.90mm |
13.50mm |
|
RFF 1/3" Superflexible RF Coaxial Cable |
2.65mm |
6.80mm |
7.60mm |
8.80mm |
|
RF 7/8" RF Coaxial Cable |
9.00mm |
22.20mm |
24.90mm |
27.50mm |
|
RFA 7/8" RF Coaxial Cable |
9.40mm |
22.50mm |
25.40mm |
27.80mm |
|
RFA 1 1/4" RF Coaxial Cable |
13.00mm |
32.20mm |
35.80mm |
39.00mm |
|
RFA 1 5/8" RF Coaxial Cable |
17.60mm |
42.20mm |
46.30mm |
50.00mm |
