Capillary Tube/Rod

YOFC's capillary tubes/rods are produced through outside vapor deposition (OVD) and vapor axial deposition (VAD) in combination with high-precision drawing process, so they have higher chemical purity and geometric accuracy, and can be used for the stacking of photonic crystal fibres/microstructure fibre preforms and the drawing of beam combiners and photonic lanterns. Moreover, they are highly customizable, so they can meet customer requirements for different applications.
Applications
  • Stacking of photonic crystal fibres/microstructure fibre preforms
  • Drawing of beam combiner and photonic lantern
Characteristics
  • High precision
  • Good uniformity
  • Customizable size

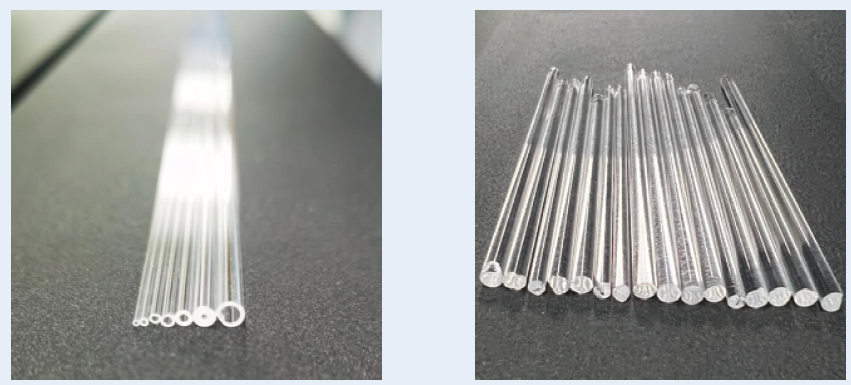

Cross Section

Customization

Capillary tube and rod can be customized in terms of sizes and refractive index profiles.

Specifications

Capillary Tube
Outer Diameter(mm) 0.5 - 10
OD Tolerance(mm) ± 0.05
Duty Ratio (ID/OD) 0.2 - 0.9
Wall Thickness Tolerance(mm) ± 0.05
Length(mm) 100 - 2000
Capillary Rod
Outer Diameter(mm) 0.5 - 10
OD Tolerance(mm) ± 0.05
Length(mm) 100 - 2000
