Communication Fibre Patchcord

Optical fibre patchcord can connect the two ends of the optical fibre to achieve flexible optical path communication. It's mainly used to connect optical transceivers. YOFC can provide a full series of optical fibre patchcord for communication, which can be customized to fulfill widespread use in fibre communication system, fibre access network, local area network and so on.
Applications
  • Local network, wide area network, cable TV
  • FTTx
  • DWDM system
  • Test equipment and active device terminal
Characteristics



  • Low insertion loss and high return loss
  • High reliability, high stability
  • High repeatability and good interchangeability
  • Three types of fibre end face: PC, UPC, APC
  • Various connector forms
  • Full series of communication fibres are
  • available for selection
  • Cable diameter: φ0.9mm, φ2.0 mm, and φ3.0mm are optional and can be externally armored
  • The length of optical cable can be customized according to customer's requirements

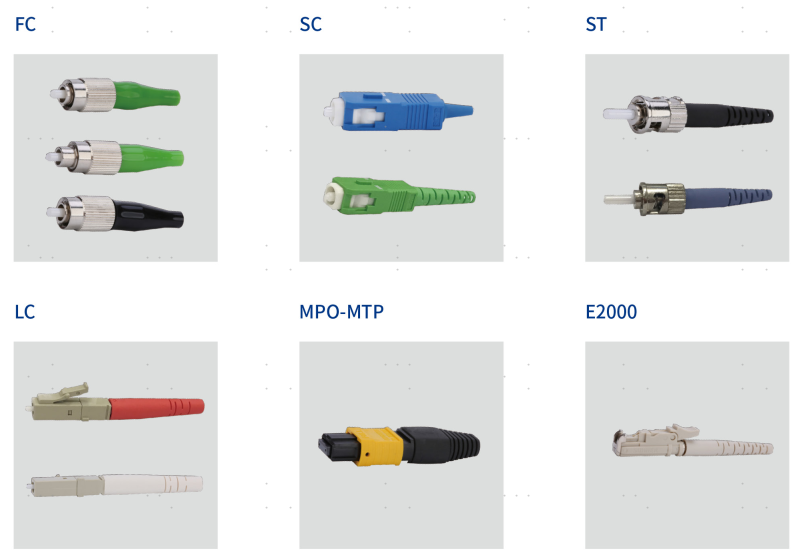

Types of Communication Fibre Patchcord

Specifications

Connector Type

FC/PC,FC/APC,LC/PC,LC/APC,SC/PC,SC/APC,ST/PC,SMA905, MT-RJ, MPO/MTP, E2000

Fiber Type

• Singlemode    (G.652,     G.655,     G.657,     etc.)

• Multimode (50/125, 62.5/125, OM2/OM3/OM4/OM5, etc.)

• Special  Wavelength  Fiber,  Coupling Fiber

Protective Layer

Φ0.9mm,Φ2.0mm,Φ3.0mm Loose Flange, Φ0.9mm Tight Tube, etc.
