- Optical distribution frame
- Optical fibre network system
- High speed optical fibre transmission system
- CATV system
- Long distance trunk dense wavelength division multiplexing (DWDM) system
- Optical add drop multiplexer (OADM)
- Measurement of high power optical devices
Fixed Attenuator
As an optical passive device, the optical fibre attenuator is used for debugging the optical power performance in the optical communication system, debugging the calibration and correction of the optical fibre instrument, and attenuating the optical fibre signal. The product is made of attenuated fibre doped with metal ions, which can adjust the optical power to the required level.

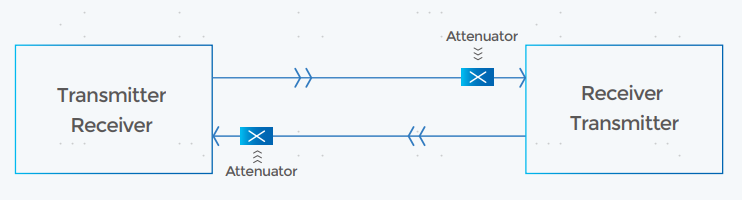

The fixed attenuator is an optical device that can reduce the energy of the optical signal. It is used to attenuate the input optical power and avoid the distortion of the optical receiver due to the super strong input optical power. YOSC's fixed attenuator products include six types: 2dB, 3dB, 5dB, 7dB, 10dB, and 15dB.
Details
Specification
Documents
Applications
Characteristics
- The attenuation value varies from 2dB up to 15dB (2dB, 3dB, 5dB, 7dB, 10dB, 15dB）
- Communication band covers 1260 nm to 1625 nm
- Plug structure, easy to install
- Various plugs available
- Precise attenuation and high return loss
- Meet GR-1221-CORE, GR-1209-CORE, GR-468-CORE standard certification
Product characteristics / Enhanced graph
Specifications
|
Type |
ATT-XXdB-XX-XX* 1 |
|||||
|---|---|---|---|---|---|---|
|
Parameters |
Optical specifications |
|||||
|
Wavelength range(nm) |
1260 ~ 1625 |
|||||
|
ATT(dB) |
2 |
3 |
5 |
7 |
10 |
15 |
|
ATT range(dB)@1260nm~1610nm |
2.0 ± 0.5 |
3.0 ± 0.5 |
5.0 ± 0.5 |
7.0 ± 0.7 |
10.0 ± 1.0 |
15.0 ± 1.5 |
|
ATT range(dB)@1610nm~1625nm |
2.00 ± 0.75 |
3.00 ± 0.75 |
5.00 ± 0.75 |
7.00 ± 0.95 |
10.0 ± 1.0 |
15.0 ± 1.5 |
|
Repeatability(dB) |
2.0 ± 0.5 |
3.0 ± 0.5 |
5.0 ± 0.5 |
7.0 ± 0.5 |
10.0 ± 0.5 |
15.0 ± 0.5 |
|
Plug in & out times(circle) |
≥ 200 |
|||||
|
Optical power(mw) |
≥ 500 |
|||||
|
Return loss (dB) |
≥ 45 |
|||||
|
Type of connector |
LC/UPC, SC/UPC, ST/UPC, FC/UPC, MU/UP |
|||||
*① ATT-XXdB-XX-XX, where the first XX refers to the attenuation value, the second XX refers to the optical fibre type, and the third XX refers to the structure type
Environmental indicators
|
Storage temperature(℃) |
-40 |
- |
85 |
|---|---|---|---|
|
Operating temperature (℃) |
-5 |
- |
65 |
|
Relative humidity |
5 |
- |
95 |
