Ultra-miniaturized DCM for O+E+C Band

The ultra-miniaturized dispersion compensation module for O+E+C band can adjust the dispersion both at O+C-band for standard single-mode fibre (G.652), so as to optimize the residual dispersion of the system. At the same time, the module has ultra-low insertion loss at O+E+C-band.

Based on the newest TDCF design, mature and reliable processing technology, the module can improve the performance of optical transmission system. Also, ultra-miniaturized dimensions of the module can meet the requirement of system miniaturization.

Applications

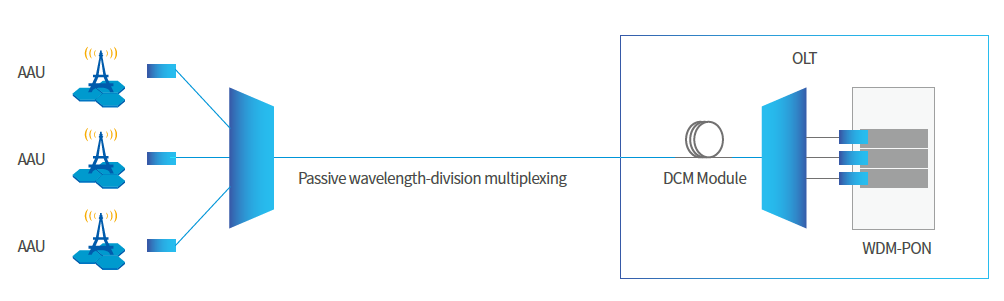

  • Adjusting dispersion in O-band for 5G front-haul transmission system
  • Long-haul telecommunication systems with standard single-mode fibre (G.652)
  • DWDM transmission system
  • SDH transmission system
  • Cable AM television video system
Characteristics
  • Broadband dispersion compensation in DWDM system
  • Ultra-low insertion loss
  • Ultra-low polarization mode dispersion
  • Meet or exceed Telcordia GR-2854-CORE specification
  • Meet or exceed Telcordia GR-1221-CORE specification
  • Ultra-miniaturized dimensions



Nonlinear Properties
Parameters Minimum Maximum
SBS Threshold (dBm)

6

-

Nonlinear Coeff. (n2/Aeff) (W-1)

-

1.4×10-9

Effective Area (Aeff)(μm2)

20

-

Environmental characteristics
Parameters Minimum Maximum

Operating Temperature Range(℃)

-5

70

Storage Temperature Range(℃)

-40

85

Environmental/Reliability

Telcordia GR-2854 and GR-1221 Qualified
Packing Style

Packing Style

Product Type

Dimensions(mm)

Connector Pigtail

Standard

AD-1KM 100×100×15 LC/UPC
or as Requested
2.0mm loose tube, Length: 0.5 ± 0.05
AD-2KM 125×105×20 Adapter

Others

Neutral Packaging or Customized

Specifications

Product Type AD-1KM AD-2KM
Fibre TDCF
Operating Wavelength (nm) O-band (1320 - 1375)
E-band (1410 - 1480)
C-band (1525 - 1565)

Length (km)*

0.95 to 1.05

1.95 to 2.05

Dispersion@1331nm (ps/nm)

-63 to -83

-130 to -162

Dispersion@1351nm (ps/nm)

-65 to -86

-133 to -168

Dispersion@1371nm (ps/nm)

-69 to -94

-142 to -184

Insertion Loss@1320 - 1375nm(dB)

≤ 2.0

≤ 3.3

Insertion Loss@1410 - 1470nm(dB)

≤ 2.0

≤ 3.2

Insertion Loss@1525 - 1565nm(dB)

≤ 1.5

≤ 2.2

Polarization Mode Dispersion (ps) *

≤ 0.25

≤ 0.3

Polarization Dependent Loss (dB)

≤ 0.1

Wavelength Dependent Loss@1525-1565nm (dB)

≤ 0.3

Connector Return Loss (dB)

< -45

*① Other fibre length is available as requested.
*② PMD is average differential group delay over the wavelength range measured by Jones Matrix Method.
