Photonic Lantern

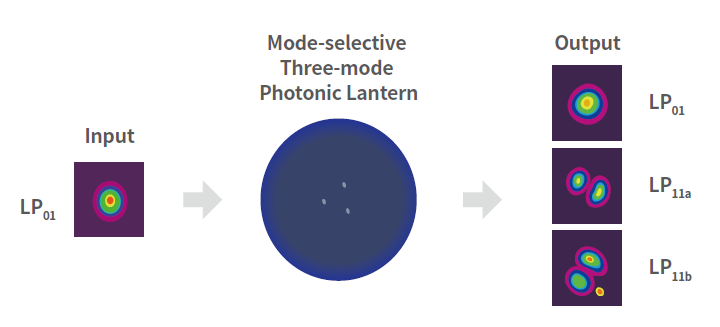

The photonic lantern is a mode multiplexer/ demultiplexer used to improve the
transmission capacity. The SMF cluster is embedded into a low refractive index capillary
for adiabatic tapering, and then the tapered end is spliced with a few-mode fibre,
fundamental mode in SMF is converted into the specific modes in FMF to realize a
mode conversion and multiplexing ,The photonic lantern utilizes the orthogonality
among various modes arising in few-mode fibres to greatly increase the number of data
transmission channels and improve the transmission capacity.
Details
Specification
Documents
Applications
Characteristics
- Low insertion loss
- Small crosstalk
- Excellent electromagnetic interference free characteristics
Transmission Matrix
| Input (dBm)\Output(dBm) | LP01 | LP11a | LP11b | |
|---|---|---|---|---|
| LP01 |
1.08 |
-13.36 |
-17.42 |
|
| LP11a |
-10.3 |
-1.7 |
-22.8 |
|
| LP11b |
-28.8 |
-17.5 |
-1.85 |
|
Specifications
| Product Type | Mode-selective Three-mode Photonic Lantern |
|---|---|
|
Number of Input SMF |
3 |
|
Operating Wavelength (nm) |
1530 - 1600 |
| Fibre Type | |
|
Typical Input Fibre |
PH 1010-A（G.652) |
|
Typical Output Fibre |
FM2010-A or FM SI-2-ULL |
|
Optical Properties |
|
|
Insertion Loss (dB) |
<5.0 |
|
Mode-dependent Loss (dB) |
<3.0 |
|
Polarization-dependent Loss (dB) |
<0.5 |
|
Appearance |
|
|
Dimensions (mm) |
200.0×10.0×7.5 |
|
Pigtail Length (m) |
1.0 or Customized |
