Homogenized Fibre

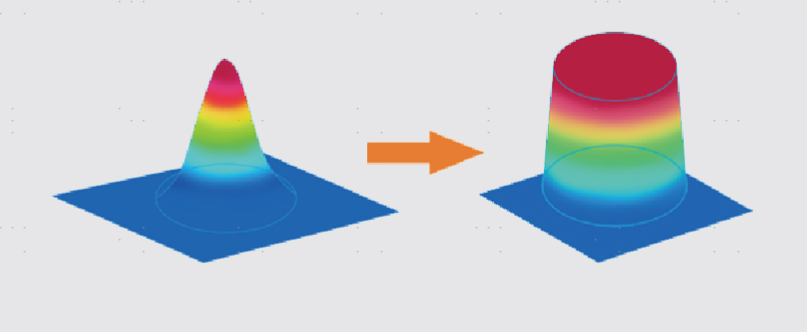

YOFC Homogenized Fibre adopts a special waveguide and structure design, which can
be highly compatible with traditional fibres. With special design, the propagation mode in
the fibre core can be adjusted to convert the input beam into a uniform flat-top beam
profile while maintaining efficient optical propagation and an ultra-low insertion loss. The
homogenized fibre can be efficiently integrated with existing optical systems, and used in
laser cladding, laser cleaning, laser welding, uniform illumination, spectroscopy, power
supply, medical care and other fields.
Details
Specification
Documents
Applications
Characteristics
- Flat-top beam profile
- Beam uniformity-reduces hot spots
- Ultra-low insertion loss
- Effective brightness conservation
- Excellent compatibility-compatible with most optical fiber interconnection systems
- Products can be used at different power levels
Specifications
Specifications-1
| Fiber Type | YH 105/125-22/250 | YH 200/220-22/320 | YH 400/440-22/730 | YH 400/440-26/730 | YH 600/660-26/960 | ||
|---|---|---|---|---|---|---|---|
| Part No. | YH2010-E | YH2010-E | YH2010-F | YH2010-B | YH2010-D | ||
| Optical Properties | |||||||
| Operating Wavelength（nm） | 500 ~ 1200 | ||||||
| Inner Cladding NA | 0.22 ± 0.02 | 0.22 ± 0.02 | 0.22 ± 0.02 | 0.26 ± 0.02 | 0.26 ± 0.02 | ||
| Geometrical Properties | |||||||
| Core Diameter (µm) | 105.0 ± 4.0 | 200.0 ± 4.0 | 400.0 ± 10.0 | 400.0 ± 10.0 | 600.0 ± 30.0 | ||
| Cladding Diameter (µm) | 125.0 ± 3.0 | 220.0 ± 3.0 | 400.0 ± 10.0 | 440.0 ± 10.0 | 660.0 ± 30.0 | ||
| Coating Diameter (µm) | 250.0 ± 15.0 | 320.0 ± 15.0 | 730.0 ± 30.0 | 730.0 ± 30.0 | 960.0 ± 50.0 | ||
| Core/Cladding Concentricity (µm) | ≤ 3.0 | ≤ 2.0 | ≤ 3.0 | ≤ 3.0 | ≤ 8.0 | ||
| Cladding Non-circularity (%) | ≤ 2.0 | ≤ 1.0 | ≤ 2.0 | ≤ 2.0 | ≤ 2.0 | ||
| Proof Test (kpsi) | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 | ||
| Coating Material | Acrylic Resin | ||||||
Specifications-2
| Fiber Type | YH 200/220-22/350(DC) | YH 70/90/360-15/540(DC) |
YH 100/120/360 -15/540(DC) |
YH 50/70/360 -22/540(DC) |
YH 100/120/360 -22/540(DC) |
YH 1000/1100 -22/1350(D |
||
|---|---|---|---|---|---|---|---|---|
| Part No. | YH2110-A | YH2110-A |
YH2111-B |
YH2110-B |
YH2110-A |
YH2110-B |
||
| Optical Properties | ||||||||
| Operating Wavelength（nm） |
500 ~ 1200 |
|||||||
| Inner Cladding NA | 0.22 ± 0.02 |
0.15 ± 0.02 |
0.15 ± 0.02 |
0.22 ± 0.02 | 0.22 ± 0.02 | 0.22 ± 0.02 | ||
| Inner Coating NA | ≥ 0.46 | ≥ 0.46 | ≥ 0.46 | ≥ 0.46 | ≥ 0.46 | ≥ 0.46 | ||
| Geometrical Properties | ||||||||
| Core Diameter (µm) |
200.0 ± 4.0 |
72.0 ± 2.0 |
100.0 ± 2.0 |
52.0±3.5 |
100.0±2.0 |
1000.0 ± 20.0 |
||
| Cladding Diameter (µm) |
220.0 ± 3.0 |
- | - | - | - |
1100.0 ± 22.0 |
||
| Inner Cladding Diameter (µm) | - |
93.0 ± 3.0 |
123.0 ± 4.0 |
73.0±4.0 |
123.0±4.0 |
- | ||
| Outer Cladding Diameter (µm) | - |
367.5 ± 7.5 |
365.0 ± 5.0 |
365.0±5.0 |
365.0±5.0 |
- | ||
| Coating Diameter（μm） |
350.0 ± 20.0 |
540.0±15.0 |
540.0±15.0 |
540.0±15.0 |
540.0±15.0 |
1350 ± 50 |
||
| Core/Outer Cladding Concentricity (µm) | ≤ 2.0 | ≤ 2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
||
| Cladding Non-circularity (%) |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
||
| Proof Test (kpsi) | ≥ 100 | ≥ 100 |
≥100 |
≥100 |
≥100 |
≥100 |
||
| inner Coating Material | Low Refractive Index Coating | |||||||
| Outer Coating Material | Acrylic Resin | |||||||
