Lensed Fibre
EDFA is the most widely used optical fibre amplifier in the field of optical fibre communication. As one of core components of EDFA, the lensed fibre is used to couple as much laser from the semiconductor laser chip into the fibre as possible, so that the seed laser source has high power. Lensed fibre is also widely used in the fields of fibre optic gyroscope, optic fibre sensing and tunable external-cavity semiconductor laser. YOSC can provide high quality wedge, oblique wedge and tapered lensed fibres.
Details
Specification
Documents
Applications
Characteristics
- The end face of the optical fibre is a cylindrical lens or a spherical lens
- Geometric indicators are customizable
- Optical indicators are customizable
- High coupling efficiency
- High machining accuracy
- Low insertion loss
- The bare fibre can be metallized
- The end face can be coated
- Different types of connector are available

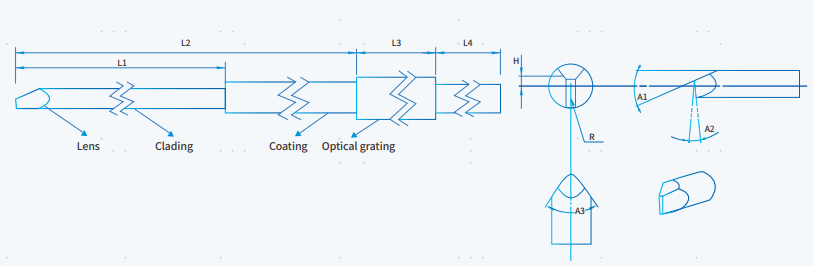

Enhanced graph
Specifications
|
Type |
Wedge Lensed fibre |
Angle wedged lensed fibre |
Taper lensed fibre |
Angle polished fibre |
Tolerance |
Unit |
|---|---|---|---|---|---|---|
|
Fibre Type |
SM/MM/PM/Customized |
/ |
/ |
|||
|
Stripping Length |
5 - 25 / customized |
±0.5 |
mm |
|||
|
Wedge/cone/ oblique Angle |
35 - 130 |
35 - 130 |
30 - 130 |
25 - 60, 81 - 90 |
±2.5 |
。 |
|
Top Chamfer |
/ |
17 - 65 |
/ |
/ |
±2.5 |
|
|
AR Bevel |
/ |
8 / Customized |
/ |
/ |
±1 |
|
|
Tip-to-core Distance of fibre H |
/ |
15 / Customized |
/ |
/ |
±5 |
µm |
|
Curvature radius R |
4 - 40 |
±1 |
||||
|
Connector (optional) |
FC/PC; FC/APC; customized |
FC/PC; FC/APC; customized |
FC/PC; FC/APC; customized |
FC/PC; FC/APC; customized |
/ |
/ |
|
AR Coating (optional) |
R < 0.2% @ specified band |
R < 0.2% @ specified band |
R < 0.2% @ specified band |
R < 0.2% @ specified band |
/ |
|
|
Metallization (optional) |
customized |
customized |
customized |
customized |
/ |
|
| Connector Slow Axis Position (only PM fibre) |
0 / 90 |
0 / 90 |
/ |
0 / 90 |
±5 |
。 |
| Mirror ridge slow axis position (only PM fibre) |
0 / 90 |
0 / 90 |
/ |
0 / 90 |
±5 |
|
Environmental indicators
|
Items |
Minimum |
Maximum |
|---|---|---|
|
Operating temperature range (℃) |
-40 |
85 |
|
Relative humidity (%RH) |
- |
85 |
|
Environmental/reliability testing |
Compliant with Telcordia GR-2854 and GR-1221 standards |
|
Packaging style
|
Packaging style |
Dimension (mm) |
|---|---|
|
Standard dimension |
316×291×21.5 |
|
Others |
Neutral packaging or according to customer requirements |
