Cable Type: RFA 1 1/4" -50(BHF) HCTAY(Z)-50-32

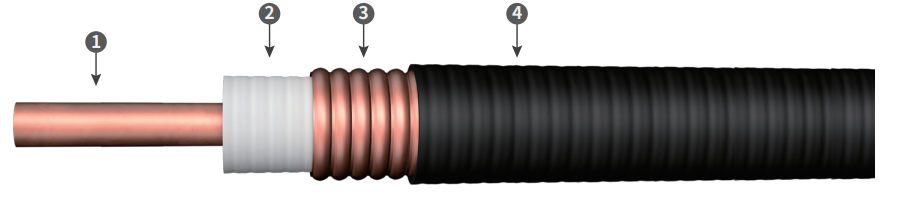

1 Smooth Copper Tube
2 Foamed PE Dielectric
3 Ring Corrugated Cu-tube
4 PE Jacket or LSZH
|
Characteristic impedance |
50 ± 1Ω |
|---|---|
|
Return loss for |
|
| 320 ‒ 480 MHz | As specified by customer |
|
700 ‒ 960 MHz |
As specified by customer |
|
1700 ‒ 1880 MHz |
As specified by customer |
|
1880 ‒ 2180 MHz |
As specified by customer |
|
2300 ‒ 3000 MHz |
As specified by customer |
|
3300 ‒ 3700 MHz |
As specified by customer |
|
Other bands also available on request |
|
| Attenuation | See table |
|
Velocity factor |
0.88 |
|
Capacitance |
76 pF/m |
|
Maximum frequency |
3500 MHz |
|
Max power rating |
See table |
|
Peak RF voltage rating |
4.6 kV |
|
Peak power rating |
211 kW |
|
Frequency(MHz) |
10 |
30 |
50 |
100 |
200 |
300 |
400 |
450 |
500 |
700 |
800 |
900 |
950 |
1000 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Attenuation Ambient temperature +20℃dB/100m |
Typical |
0.25 |
0.439 |
0.571 |
0.819 |
1.18 |
1.47 |
1.72 |
1.83 |
1.94 |
2.34 |
2.53 |
2.70 |
2.79 |
2.87 |
| Power rating ambient +40℃ inner conductor +100℃KW |
41 |
23 |
18 |
12 |
8.5 |
6.8 |
5.8 |
5.4 |
5.1 |
4.2 |
3.9 |
3.7 |
3.6 |
3.5 |
|
|
Frequency(MHz) |
1200 |
1400 |
1600 |
1800 |
1900 |
2000 |
2200 |
2400 |
2600 |
2800 |
3000 |
3300 |
3500 |
3700 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Attenuation Ambient temperature +20℃dB/100m |
Typical |
3.18 |
3.48 |
3.76 |
4.03 |
4.16 |
4.29 |
4.54 |
4.79 |
5.02 |
5.26 |
5.48 |
5.84 |
6.05 |
6.40 |
| Power rating ambient +40℃ inner conductor +100℃KW |
3.1 |
2.8 |
2.6 |
2.4 |
2.4 |
2.3 |
2.2 |
2.0 |
1.9 |
1.9 |
1.8 |
1.7 |
1.6 |
1.5 |
|
|
Weight |
Crush Resistance |
Maximum Pulling Force |
Single Bending |
Repeated |
Operating Temperature Range |
Min. installation temperature |
|---|---|---|---|---|---|---|
|
900kg/km |
24N/mm |
2500N |
200 mm |
350 mm |
-55℃ to +80℃ |
See Jacketing Options |
|
Type |
Jacket |
IEC60754-1/-2 halogenfree, noncorrosive |
IEC61034 low smoke emission |
IEC60332-1/3C fire retardant |
Min. installation temperature |
|---|---|---|---|---|---|
|
HCTAY-50-32 |
Black polyethylene |
Yes |
No |
No |
-40℃ |
|
HCTAYZ-50-32 |
Black halogen free fire retardant thermoplastic |
Yes |
Yes |
Yes |
-20℃ |
|
|
Inner Conductor |
Dielectric |
Outer Conductor |
Jacket |
|---|---|---|---|---|
|
RF 1/2" RF Coaxial Cable |
4.80mm |
12.10mm |
13.90mm |
16.00mm |
|
RFF 1/2" Superflexible RF Coaxial Cable |
3.55mm |
9.00mm |
11.90mm |
13.50mm |
|
RFF 1/3" Superflexible RF Coaxial Cable |
2.65mm |
6.80mm |
7.60mm |
8.80mm |
|
RF 7/8" RF Coaxial Cable |
9.00mm |
22.20mm |
24.90mm |
27.50mm |
|
RFA 7/8" RF Coaxial Cable |
9.40mm |
22.50mm |
25.40mm |
27.80mm |
|
RFA 1 1/4" RF Coaxial Cable |
13.00mm |
32.20mm |
35.80mm |
39.00mm |
|
RFA 1 5/8" RF Coaxial Cable |
17.60mm |
42.20mm |
46.30mm |
50.00mm |
