Fluorine-doped Capillary Tube
The fluorine-doped capillary tube is fluorine-doped by using the plasma chemical vapor
deposition (PCVD) technique to achieve a multi-layer structure with low internal refractive
index and high external refractive index. It is processed by multiple processes and suitable
for medium and high-power fibre optic combiners and photonic lanterns.
Details
Specification
Documents
Applications
Characteristics
- Good dimensional uniformity
- Good temperature resistance
- Good optical performance
- Precise control and flexible section

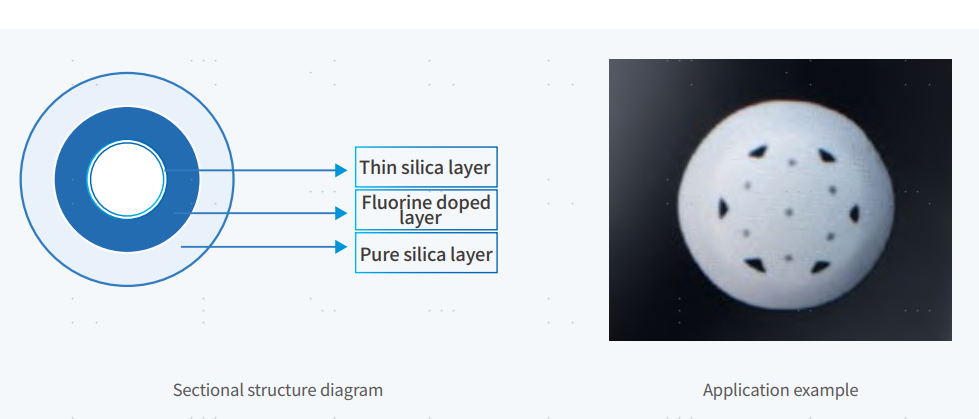

Structure
Specifications
|
Product type |
DFT0.75/0.4-150-0.22 |
DFT1.5/0.8-150-0.22 |
DFT1.1/0.85-150-0.22 |
DFT1.2/0.96-150-0.22 |
|---|---|---|---|---|
|
Length (mm) |
150±0.3 |
|||
|
Typical value of NA |
0.22 |
|||
|
Material |
F-doped SiO2 |
|||
|
Outer diameter (mm) |
0.75±0.05 |
1.5±0.05 |
1.1±0.05 |
1.2±0.05 |
|
Inside diameter (mm) |
0.4±0.05 |
0.8±0.05 |
0.85±0.05 |
0.96±0.05 |
| Ratio of outer diameter to inside diameter of fluorine-doped layer |
>1.1 |
|||
*The length is customizable within a certain range
