(6+1)×1 Multi-Mode Pump Combiner
The (6+1)×1 multi-mode fibre combiner is designed for high power fibre laser. It combines six pump channels and one signal channel into one double cladding output fibre. Fibre type can be customized.
Details
Specification
Documents
Applications
Characteristics
- Low insertion loss
- High pump transfer efficiency
- High stability

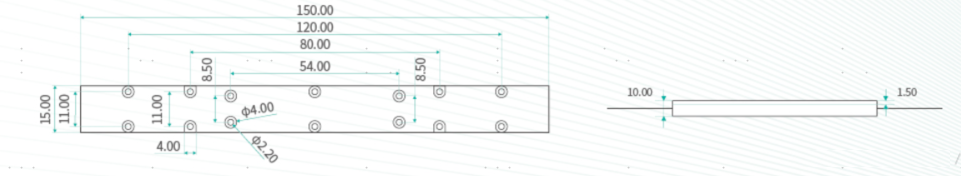

Appeatance and size
Specifications
|
Product Type |
MPC3-P13- S699-10-C5-F |
MPC3-P16- S699-10-C5-F |
MPC3-P13- S58D-10-C5-B |
MPC3-P16- S58D-10-C5-B |
MPC3-P26- S57F-18-C5B |
|---|---|---|---|---|---|
|
Pump Operating Wavelength (nm) |
800 - 1000 |
800 - 1000 |
800 - 1000 |
800 - 1000 |
800 ~ 1000 |
| Input Pump Port | |||||
|
Core/Cladding Diameter (µm) |
200/220 |
220/242 |
200/220 |
220/242 |
220/242 |
|
Numerical Aperture |
0.22 |
0.22 |
0.22 |
0.22 |
0.22 |
| Input Signal Port | |||||
|
Fibre Type |
GDF-DC20/400-0.065 |
GDF-DC20/400-0.065 |
GDF-DC25/400-0.065 |
GDF-DC25/400-0.065 |
YOFC GDF-DC 20/400-0.065 |
| Output Port | |||||
|
Fibre Type |
GDF-DC20/400-0.065 |
GDF-DC20/400-0.065 |
GDF-DC 50/400-0.11 |
GDF-DC 50/400-0.11 |
YOFC GDF-DC 25/250-0.065 |
| Optical Properties | |||||
|
Pump Efficiency (%) |
> 97 |
> 97 |
> 97 |
> 97 |
> 97 |
| lnsertion Loss (dB) | < 1 | < 1 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
| Max. Input Signal Power (W) | - | - |
3000 |
3000 |
3000 |
| Max. Pump Power Per Port (W) |
500 |
500 |
500 |
500 |
500 |
|
Environmental Properties |
|||||
| Operating Temperature (℃) |
-5 to +70 |
-5 to +70 |
-5 to +70 |
-5 to +70 |
-5 to +70 |
| Operating Relative Humidity (%) | 5 ~ 85 | 5 ~ 85 | 5 ~ 85 | 5 ~ 85 | 5 ~ 70 |
| Storage Temperature (℃) |
-40 ~ +85 |
-40 ~ +85 |
-40 ~ +85 |
-40 ~ +85 |
-40 ~ +85 |
| Appearance | |||||
|
Dimensions (mm) |
10×15×150 |
10×15×150 |
10×15×150 |
10×15×150 |
10×15×150 |
|
Pigtail Length (m) |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
*Fibre type can be customized
