Power Delivery Fibre Coating

Everfoton Power Delivery Fibre Coating means laying optical thin film on the large-core power delivery optical fibre end face to increase light transmission or reflection. By using special precision polishing process, efficient cleaning and professional coating technology, the characteristics of high-efficiency coupling and highpower transmission are achieved. With high cleanliness of the fibre end face and high coating reliability, it is suitable for industrial laser pump source, medical cosmetology, optical fibre senor, and so on.
Applications
  • Pigtail output of laser pump source
  • Flexible transmission of industrial laser
  • Medical laser equipment coupling transmission
  • Laser radar transmission
  • Optical fibre senor
Characteristics
  • Polishing: Special polishing technology, without scratches and chipping on the fibre core and cladding
  • Cleaning: High-efficiency cleaning technology, eliminating liquid residues and reducing contamination on end surface
  • Coating: Professional coating design to reduce reflection and improve light transmission efficiency

Specifications



Performance parameters Specifications
Fibre Type YOFC SI105/125、SI135/155、SI200/220、SI220/242, etc. Customized

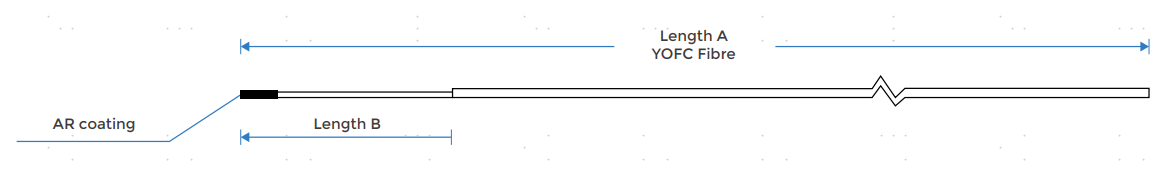

Length of the fibre (A)

35.5±0.5mm;200±10cm;235±10cm;320±10cm, etc. Customized

Fibre tip Stripped length (B) 6±0.5mm;14±0.5mm, etc. Customized

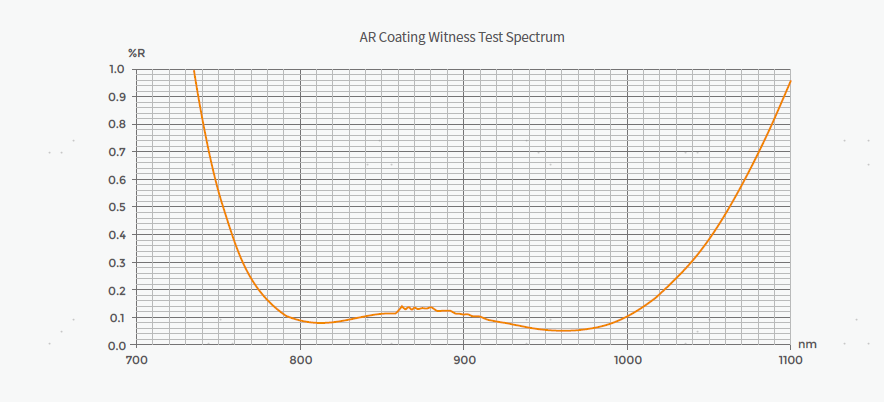

Coating parameters AR Coating,R<0.5%@780-1000nm;Customized
