Fiber Type |
Wavelength Rrange(nm) |
Optical Fiber Attenuation(dB/km) |
Full Injection Bandwidth(MHz.km) |
Effective Mode Bandwidth(MHz.km) |
Minimum Bending Radius(nm) |
|---|---|---|---|---|---|
|
G.652.D |
1310/1550 |
0.36/0.25 |
－ |
－ |
16 |
|
G.657.A2 |
1310/1550 |
0.36/0.25 |
－ |
－ |
7.5 |
|
OM4(Ala.3) |
850/1300 |
3.0/1.0 |
3500/500 |
≥4700@850nm |
7.5 |
|
OM5(Ala.4) |
850/953/1300 |
3.0/2.0/1.0 |
3500/1850/500 |
≥4700@850nm |
7.5 |
|

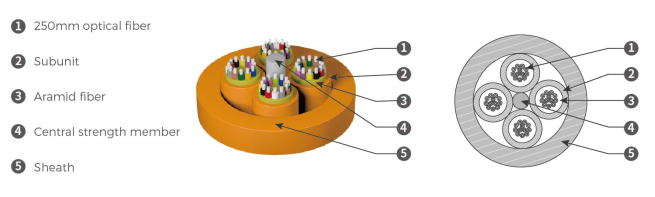

Project |
Unit |
Description |
|||||
|---|---|---|---|---|---|---|---|
|
Fibre Count |
－ |
36 |
48 |
72 |
96 |
144 |
|
|
Number of subunits × number of subunit fibers |
－ |
3*12 +1filler |
4×12 |
6×12 |
8×12 |
12×12+2 fillers （1+4+10） |
|
|
Tight-buffered optical fiber |
Material |
－ |
LSZH |
||||
|
Outer diameter |
mm |
0.85±0.05 |
|||||
|
Subunit optical fiber cable |
Material |
－ |
LSZH |
||||
|
Reinforcer |
－ |
Aramid yarn |
|||||
|

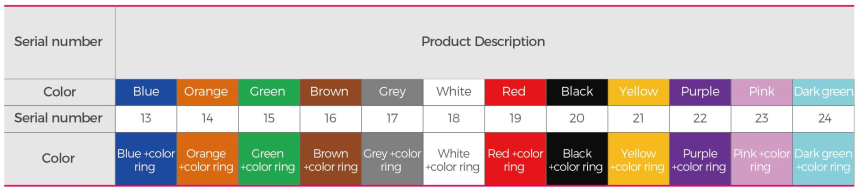

Color |
－ － |
G.652.D/G.657.A1/G.657.A2 yellow OM1/OM2 orange OM3/OM4 aqua |
|||||
|
Central reinforcer |
Material |
－ |
FRP |
||||
|
Outer sheath |
Material |
－ |
LSZH |
||||
|
Color |
－ |
G.652.D/G.657.A1/G.657.A2 yellow OM1/OM2 orange OM3/OM4 aqua green |
|||||
|
Optical cable diameter |
mm |
14.5 |
14.8 |
17.5 |
20.7 |
24.8 |
|
|
Reference weight of optical fiber cable |
kg/km |
180 |
170 |
254 |
366 |
451 |
|
|
Project |
Testing standards |
Description |
|
|---|---|---|---|
|
Tensile strength |
IEC60794-1-2 Method E1 |
Short-term |
1320N |
|
Long-term |
400 |
||
|
Crush resistance |
IEC60794-1-2 Method E3 |
Short-term |
1000N/10cm |
|
Long-term |
300N/10cm |
||
|
Impact force |
IEC60794-1-2 Method E4 |
No evident attenuation of accessories |
|
|
Alternating bending |
IEC60794-1-2 Method E6 |
||
|
Torsion |
IEC60794-1-2 Method E7 |
||
|
Temperature |
IEC60794-1-2 Method F1 |
20°C to +60°C (transportat/storage/operating temperature) -5 °C to +50°C(installation temperature) |
|
|
Minimum bending radius |
Static |
10 times of outer diameter of optical fiber cable |
|
|
Dynamic |
20 times of outer diameter of optical fiber cable |
||
In case of free of other requirements, the require-ments for the printed label are as follows:
|
Product Model |
Product Description |
|---|---|
|
iCONEC-OIMPDCH1***S |
Indoor single-mode * core-bunched cable, G.652D, LSZH-1, 9/125µm |
|
iCONEC-OIMPDCH3***S |
Indoor single-mode * core-bunched cable, G.652D, LSZH-3, 9/125µm |
|
iCONEC-OIMPDCNR***S |
Indoor single-mode * core-bunched cable, G.652D, OFNR, 9/125µm |
|
iCONEC-OIMPDCNP***S |
Indoor single-mode * core-bunched cable, G.652.D, OFNP, 9/125µm |
|
iCONEC-OIMPDCVC***S |
Indoor single-mode * core-bunched cable, G.652.D, PVC, 9/125µm |
|
iCONEC-OIMPDCH1***E |
Indoor single-mode *core-bunched cable, G. 657.A2, LSZH-1, 9/125µm |
|
iCONEC-OIMPDCH3***E |
Indoor single-mode * core-bunched cable, G.657.A2, LSZH-3, 9/125µm |
|
iCONEC-OIMPDCNR***E |
Indoor single-mode * core-bunched cable, G.657.A2, OFNR, 9/125µm |
|
iCONEC-OIMPDCNP***E |
Indoor single-mode * core-bunched cable, G.657.A2, OFNP, 9/125µm |
|
iCONEC-OIMPDCVC***E |
Indoor single-mode * core-bunched cable, G.657.A2, PVC, 9/125µm |
|
iCONEC-OIMPDCH1***F |
Indoor single-mode * core-bunched cable, G.657.B3, LSZH-1, 9/125µm |
|
iCONEC-OIMPDCH3***F |
Indoor single-mode * core-bunched cable, G.657.B3, LSZH-3, 9/125µm |
|
iCONEC-OIMPDCNR***F |
Indoor single-mode * core-bunched cable, G.657.B3, OFNR, 9/125µm |
|
iCONEC-OIMPDCNP***F |
Indoor single-mode * core-bunched cable, G.657.B3, OFNP, 9/125µm |
|
iCONEC-OIMPDCVC***F |
Indoor single-mode * core-bunched cable, G.657.B3, PVC, 9/125µm |
|
iCONEC-OIMPDCH1***M |
Indoor multimode * core-bunched cable, OM1, LSZH-1, 62.5/125µm |
|
iCONEC-OIMPDCH3***M |
Indoor multimode * core-bunched cable, OM1, LSZH-3, 62.5/125µm |
|
iCONEC-OIMPDCNR***M |
Indoor multimode * core-bunched cable, OM1, OFNR, 62.5/125µm |
|
iCONEC-OIMPDCNP***M |
Indoor multimode * core-bunched cable, OM1, OFNP, 62.5/125µm |
|
iCONEC-OIMPDCVC***M |
Indoor multimode * core-bunched cable, OM1, PVC, 62.5/125µm |
|
iCONEC-OIMPDCH1***B |
Indoor multimode * core-bunched cable, OM2, LSZH-1, 50/125µm |
|
iCONEC-OIMPDCH3***B |
Indoor multimode * core-bunched cable, OM2, LSZH-3, 50/125µm |
|
iCONEC-OIMPDCNR***B |
Indoor multimode * core-bunched cable, OM2, OFNR, 50/125µm |
|
iCONEC-OIMPDCNP***B |
Indoor multimode * core-bunched cable, OM2, OFNP, 50/125µm |
|
iCONEC-OIMPDCVC***B |
Indoor multimode * core-bunched cable, OM2, PVC, 50/125µm |
|
iCONEC-OIMPDCH1***A |
Indoor multimode * core-bunched cable, OM3, LSZH-1, 50/125µm |
|
iCONEC-OIMPDCH3***A |
Indoor multimode * core-bunched cable, OM3, LSZH-3, 50/125µm |
|
iCONEC-OIMPDCNR***A |
Indoor multimode * core-bunched cable, OM3, OFNR, 50/125µm |
|
iCONEC-OIMPDCNP***A |
Indoor multimode * core-bunched cable, OM3, OFNP, 50/125µm |
|
iCONEC-OIMPDCVC***A |
Indoor multimode * core-bunched cable, OM3, PVC, 50/125µm |
|
iCONEC-OIMPDCH1***N |
Indoor multimode * core-bunched cable, OM4, LSZH-1, 50/125µm |
|
iCONEC-OIMPDCH3***N |
Indoor multimode * core-bunched cable, OM4, LSZH-3, 50/125µm |
|
iCONEC-OIMPDCNR***N |
Indoor multimode * core-bunched cable, OM4, OFNR, 50/125µm |
|
iCONEC-OIMPDCNP***N |
Indoor multimode * core-bunched cable, OM4, OFNP, 50/125µm |
|
iCONEC-OIMPDCVC***N |
Indoor multimode * core-bunched cable, OM4, PVC 50/125µm |
|
iCONEC-OIMPDCH1***D |
Indoor multimode * core-bunched cable, OM5, LSZH-1, 50/125µm |
|
iCONEC-OIMPDCH3***D |
Indoor multimode * core-bunched cable, OM5, LSZH-3, 50/125µm |
|
iCONEC-OIMPDCNR***D |
Indoor multimode * core-bunched cable, OM5, OFNR, 50/125µm |
|
iCONEC-OIMPDCNP***D |
Indoor multimode * core-bunched cable, OM5, OFNP, 50/125µm |
|
iCONEC-OIMPDCVC***D |
Indoor multimode * core-bunched cable, OM5, PVC, 50/125µm |
NOTES: In the product model, *** represents 3 digits. For example, the 36-core optical cable is 036.
