    iCONEC®Outdoor Fibre Optic Cables iCONEC-OCTAZ

    Mainly applied to the connection between outdoor bulidings. It has some mechanical and environmental characteristics such as pressure resistance,tension resistance, corrosion resistance, high temperature and low tempera-ture resistance.

    Applications

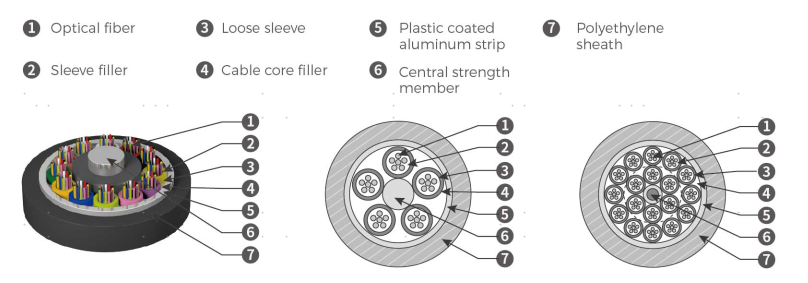

    • The iCONEC-OCTAZ fiber optic cable is constructed with a 250µm optical fiber in a loose sleeve made from high-modulus materials and filled with waterproof compound. The center of the cable core is one piece of metal strength member.
    • For fiber optic cables with a certain number of cable cores,a layer of polyethylene (PE) needs to be applied outside the metal strength member. The loose sleeve (and the filling rope) is twisted around the central strength member to form a compact and round cable core whose gaps are filled with water-blocking fillers. Aluminium polyethylene laminate (APL) is longitudinally wrapped and then extruded flame-retardant sheath to form cables
    Product standards
    • iCONEC-OCTAZ optical cables conform to YD/T 901 standard
    Characteristics
    • It has good mechanical properties and temperature characteristics
    • The loose sleeve is made of materials with good hydrolysis resistance and high strength
    • The sleeve is filled with a special ointment to protect the optical fiber
    • The specially designed compact optical cable structure effectively prevents the sleeve from retracting
    • PE sheath has excellent resistance to ultraviolet radiation
    • The following measures are taken to ensure the optical cable is waterproof:
      • A single steel wire as the central strength member
      • The loose sleeve is filled with special waterproof compound
      • Complete filling of cable core
      • Moisture-proof layer of the plastic coated aluminum strip (APL)
    Optical Properties



    Fiber Type

    Attenuation (+20°C)

    Bandwidth



    Numerical aperture



    Cable cut-off wavelength

    @850nm

    @1300nm

    @1310nm

    @1550nm

    @850nm

    @1300nm

    G.652

    －

    －

    ≤0.36dB/km

    ≤0.22dB/km

    －

    －

    －

    ≤1260nm

    G.655

    －

    －

    ≤0.40dB/km

    ≤0.23dB/km

    －

    －

    －

    ≤1450nm

    50/125µm

    ≤3.3dB/km

    ≤1.2dB/km

    －

    －

    ≥500MHz·km

    ≥500MHz·km

    0.200±0.015 NA

    －

    62.5/125µm

    ≤3.5dB/km

    ≤1.2dB/km

    －

    －

    ≥200MHz·km

    ≥500MHz·km

    0.275±0.015 NA

    －
    Structural Parameters

    Optical cable model (Increment by 2 fibers)

    Fiber count

    Sleeve count

    Filling rope count

    Reference cable weight (kg/km)

    Outer diameter (mm)

    Tensile strength for long/short term (N)

    Crush resistance for long/short term

    (N/100mm)

    Bending radius

    iCONEC-OCTAZ002-006

    2-6

    1

    4

    101

    7.7

    600/1500

    300/1000

    10D/20D

    iCONEC-OCTAZ008-012

    8-12

    2

    3

    101

    7.7

    iCONEC-OCTAZ014-018

    14-18

    3

    2

    101

    7.8

    iCONEC-OCTAZ020-024

    20-24

    4

    1

    101

    7.8

    iCONEC-OCTAZ026-030

    26-30

    5

    0

    101

    7.8

    iCONEC-OCTAZ032-036

    32-36

    6

    0

    111

    8.1

    iCONEC-OCTAZ038-048

    38-48

    4

    1

    117

    9.2

    iCONEC-OCTAZ050-060

    50-60

    5

    0

    117

    9.2

    iCONEC-OCTAZ062-072

    62-72

    6

    0

    144

    9.6

    iCONEC-OCTAZ074-084

    74-84

    7

    1

    171

    11

    iCONEC-OCTAZ086-096

    86-96

    8

    0

    171

    11

    iCONEC-OCTAZ098-108

    98-108

    9

    1

    198

    12

    iCONEC-OCTAZ110-120

    110-120

    10

    0

    198

    12

    iCONEC-OCTAZ122-132

    110-132

    11

    1

    229

    13.2

    iCONEC-OCTAZ134-144

    134-144

    12

    0

    229

    13.2

    iCONEC-OCTAZ146-216

    146-216

    13-18

    5-0

    229

    /
    Product Model

    Product Model

    Product Description

    iCONEC-OCTAZ***S

    * Core single-mode loose sleeve layer-stranding moisture-proof & flame-retardant fiber cable, G.652.D, 9/125µm

    iCONEC-OCTAZ***E

    * Core single-mode loose sleeve layer-stranding moisture-proof & flame-retardant fiber cable, G.657.A2, 9/125µm

    iCONEC-OCTAZ***F

    * Core single-mode loose sleeve layer-stranding moisture-proof & flame-retardant fiber cable, G.657.B3, 9/125µm

    iCONEC-OCTAZ***M

    * Core multimode loose sleeve layer-stranding moisture-proof & flame-retardant fiber cable, OM1, 62.5/125µm

    iCONEC-OCTAZ***B

    * Core multimode loose sleeve layer-stranding moisture-proof & flame-retardant fiber cable, OM2, 50/125µm

    iCONEC-OCTAZ***A

    * Core multimode loose sleeve layer-stranding moisture-proof & flame-retardant fiber cable, OM3, 50/125µm

    iCONEC-OCTAZ***N

    * Core multimode loose sleeve layer-stranding moisture-proof & flame-retardant fiber cable, OM4, 50/125µm

    iCONEC-OCTAZ***D

    * Core multimode loose sleeve layer-stranding moisture-proof & flame-retardant fiber cable, OM5, 50/125µm
    • Remarks: In the product model, *** represents 3 digits. For example, the 2-core optical cable is 002.
    • Storage and operating temperature: -40°C to +70°C.
    • Applicable to: Pipeline, overhead
