    iCONEC®OutdoorFiber Optic Cables iCONEC-OCTA

    Mainly applied to the connection between outdoor bulidings. It has some mechanical and environmental characteristics such as pressure resistance, tension resistance, corrosion resistance, high temperature and low temperature resistance.

    Applications

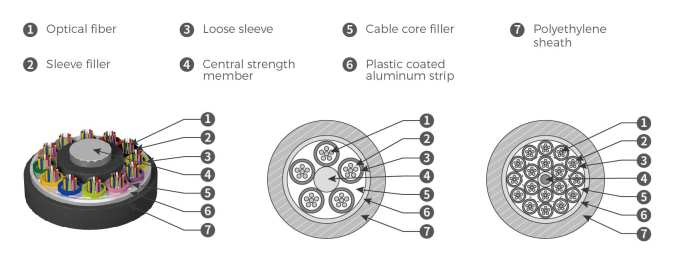

    • The iCONEC-OCTA fiber optic cable is constructed with a 250µm optical fiber in a loose sleeve made from high-modulus materials and filled with water-proof compound. The center of the cable core is one piece of metal strength member.
    • For fiber optic cables with a certain number of cable cores, a layer of polyethylene (PE) needs to be applied outside the metal strength member. The loose sleeve (and the filling rope) is twisted around the central strength member to form a compact and round cable core whose gaps are filled with water-blocking fillers. Plastic coated aluminum strip (APL) is longi-tudinally wrapped and then extruded into polyethylene sheath to form cables.
    Product standards
    • The YOFC iCONEC-OCTA conforms to the standard of YD/T 901 and IEC60794-1
    Characteristics
    • It has good mechanical properties and temperature characteristics
    • The loose sleeve is made of materials with good hydrolysis resistance and high strength
    • The sleeve is filled with a special ointment to protect the optical fiber
    • The specially designed compact optical cable structure effectively prevents the sleeve from retracting
    • PE sheath has excellent resistance to ultraviolet radiation
    • The following measures are taken to ensure the optical cable is waterproof:
      • A single steel wire as the central strength member
      • The loose sleeve is filled with special waterproof compound
      • Complete filling of cable core
      • Moisture-proof layer of the plastic coated aluminum strip (APL)
    Optical Properties



    Fiber Type

    Attenuation (+20°C)

    Bandwidth



    Numerical aperture



    Cable cut-off wavelength

    @850nm

    @1300nm

    @1310nm

    @1550nm

    @850nm

    @1300nm

    G.652

    －

    －

    ≤0.36dB/km

    ≤0.22dB/km

    －

    －

    －

    ≤1260nm

    G.655

    －

    －

    ≤0.40dB/km

    ≤0.23dB/km

    －

    －

    －

    ≤1450nm

    50/125µm

    ≤3.3dB/km

    ≤1.2dB/km

    －

    －

    ≥500MHz·km

    ≥500MHz·km

    0.200±0.015 NA

    －

    62.5/125µm

    ≤3.5dB/km

    ≤1.2dB/km

    －

    －

    ≥200MHz·km

    ≥500MHz·km

    0.275±0.015 NA

    －
    Structural Parameters

    Optical cable model (Increment by 2 fibers)

    Fiber count

    Sleeve count

    Filling rope count

    Reference cable weight (kg/km)

    Outer diameter (mm)

    Tensile strength for long/short term (N)

    Crush resistance for long/short term (N/100mm)

    Bending radius

    iCONEC-OCTA002-006

    2-6

    1

    4

    76

    7.8

    600/1500

    300/1000

    10D/20D

    iCONEC-OCTA008-012

    8-12

    2

    3

    76

    7.8

    iCONEC-OCTA014-018

    14-18

    3

    2

    76

    7.8

    iCONEC-OCTA020-024

    20-24

    4

    1

    76

    7.8

    iCONEC-OCTA026-030

    26-30

    5

    0

    76

    7.8

    iCONEC-OCTA032-036

    32-36

    6

    0

    85

    8.1

    iCONEC-OCTA038-048

    38-48

    4

    1

    90

    9.2

    iCONEC-OCTA050-060

    50-60

    5

    0

    90

    9.2

    iCONEC-OCTA062-072

    62-72

    6

    0

    113

    9.6

    iCONEC-OCTA074-084

    74-84

    7

    1

    136

    11

    iCONEC-OCTA086-096

    86-96

    8

    0

    136

    11

    iCONEC-OCTA098-108

    98-108

    9

    1

    163

    12

    iCONEC-OCTA110-120

    110-120

    10

    0

    163

    12

    iCONEC-OCTA122-132

    122-132

    11

    1

    190

    13.2

    iCONEC-OCTA134-144

    134-144

    12

    0

    190

    13.2

    iCONEC-OCTA146-216

    146-216

    13-18

    5-0

    190

    13.7

    iCONEC-OCTA288

    288

    24

    0

    239

    15.5
    Product Model

    Product Model

    Product Description

    iCONEC-OCTA***S

    * Core single-mode loose sleeve layer-stranding moisture-proof fiber cable, G.652.D, 9/125µm

    iCONEC-OCTA***E

    * Core single-mode loose sleeve layer-stranding moisture-proof fiber cable, G.657.A2, 9/125µm

    iCONEC-OCTA***F

    * Core single-mode loose sleeve layer-stranding moisture-proof fiber cable, G.657.B3, 9/125µm

    iCONEC-OCTA***M

    * Core multimode loose sleeve layer-stranding moisture-proof fiber cable, OM1, 62.5/125µm

    iCONEC-OCTA***B

    * Core multimode loose sleeve layer-stranding moisture-proof fiber cable, OM2, 50/125µm

    iCONEC-OCTA***A

    * Core multimode loose sleeve layer-stranding moisture-proof fiber cable, OM3, 50/125µm

    iCONEC-OCTA***N

    * Core multimode loose sleeve layer-stranding moisture-proof fiber cable, OM4, 50/125µm

    iCONEC-OCTA***D

    * Core multimode loose sleeve layer-stranding moisture-proof fiber cable, OM5, 50/125µm
    • Remarks: In the product model, *** represents 3 digits. For example, the 2-core optical cable is 002.
    • Storage and operating temperature: -40°C to +70°C.
    • Applicable to: Pipeline, overhead
