    iCONEC®Outdoor Fibre Optic Cables iCONEC-OCTS

    Mainly applied to the connection between outdoor bulidings. It has some mechanical and environmental characteristics such as pressure resistance,tension resistance, corrosion resistance, high temperature and low temperature resistance.

    Applications

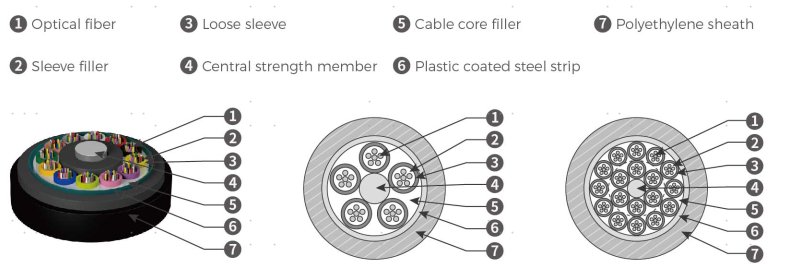

    • The iCONEC-OCTS fiber optic cable is constructed with a 250µm optical fiber in a loose sleeve made from high-modulus materials and filled with waterproof compound. The center of the cable core is one piece of metal strength member.
    • For fiber optic cables with a certain number of cable cores, a layer of polyethylene (PE) needs to be applied outside the metal strength member. The loose sleeve (and the filling rope) is twisted around the central strength member to form a compact and round cable core whose gaps are filled with water-blocking fillers. Double-sided plastic coated steel strip (PSP) is longitudinally wrapped to form cables through extrusion of a polyethylene sheath.
    Product standards
    • The YOFC iCONEC-OCTS conforms to the standards of YD/T 901 and IEC 60794-1
    Characteristics
    • It has good mechanical properties and temperature characteristics
    • The loose sleeve is made of materials with good hydrolysis resistance and high strength
    • The sleeve is filled with a special ointment to protect the optical fiber
    • The specially designed compact optical cable structure effectively prevents the sleeve from retracting
    • It has good compression resistance and flexibility
    • PE sheath has excellent resistance to ultraviolet radiation
    • The following measures are taken to ensure the optical cable is waterproof:
      • A single steel wire as the central strength member
      • The loose sleeve is filled with special waterproof compound
      • Complete filling of cable core
      • Double-sided coated plastic steel strip (PSP) can improve the moisture resistance of fiber optic cables
    Optical Properties

    Fiber Type

    Attenuation (+20°C)

    Bandwidth

    Numerical aperture

    cut off wavelength

    @850nm

    @1300nm

    @1310nm

    @1550nm

    @850nm

    @1300nm

    G.652

    －

    －

    ≤0.36dB/km

    ≤0.22dB/km

    －

    －

    －

    ≤1260nm

    G.655

    －

    －

    ≤0.40dB/km

    ≤0.23dB/km

    －

    －

    －

    ≤1450nm

    50/125µm

    ≤3.3dB/km

    ≤1.2dB/km

    －

    －

    ≥500MHz·km

    ≥500MHz·km

    0.200±0.015 NA

    －

    62.5/125µm

    ≤3.5dB/km

    ≤1.2dB/km

    －

    －

    ≥200MHz·km

    ≥500MHz·km

    0.275±0.015 NA

    －
    Structural Parameters

    Optical cable model (Increment by 2 fibers)

    Fiber count

    Sleeve count

    Filling rope count

    Reference cable weight (kg/km)

    Outer diameter (mm)

    Tensile strength for long/short term (N)

    Crush resistance for long/short term (N/100mm)



    Bending radius

    iCONEC-OCTS002-006

    2-6

    1

    4

    96

    7.8

    600/1500

    300/1000

    10D/20D

    iCONEC-OCTS008-012

    8-12

    2

    3

    96

    7.8

    iCONEC-OCTS014-018

    14-18

    3

    2

    96

    7.8

    iCONEC-OCTS020-024

    20-24

    4

    1

    96

    7.8

    iCONEC-OCTS026-030

    26-30

    5

    0

    96

    7.8

    iCONEC-OCTS032-036

    32-36

    6

    0

    96

    8.1

    iCONEC-OCTS038-048

    38-48

    4

    1

    111

    9.2

    iCONEC-OCTS050-060

    50-60

    5

    0

    111

    9.2

    iCONEC-OCTS062-072

    62-72

    6

    0

    138

    9.6

    iCONEC-OCTS074-084

    74-84

    7

    1

    168

    11

    iCONEC-OCTS086-096

    86-96

    8

    0

    168

    11

    iCONEC-OCTS098-108

    98-108

    9

    1

    195

    12

    iCONEC-OCTS110-120

    110-120

    10

    0

    195

    12

    iCONEC-OCTS122-132

    110-132

    11

    1

    228

    13.3

    iCONEC-OCTS134-144

    134-144

    12

    0

    228

    13.3

    iCONEC-OCTS146-216

    146-216

    13-18

    5-0

    228

    13.9

    iCONEC-OCTS288

    288

    24

    0

    283

    15.4
    Product Model

    Product Model

    Product Description

    iCONEC-OCTS***S

    * Core single-mode loose sleeve layer-stranding metal armored fiber cable, G.652.D, 9/125µm

    iCONEC-OCTS***E

    * Core single-mode loose sleeve layer-stranding metal armored fiber cable, G.657.A2, 9/125µm

    iCONEC-OCTS***F

    * Core single-mode loose sleeve layer-stranding metal armored fiber cable, G.657.B3, 9/125µm

    iCONEC-OCTS***M

    * Core multimode loose sleeve layer-stranding metal armored fiber cable, OM1, 62.5/125µm

    iCONEC-OCTS***B

    * Core multimode loose sleeve layer-stranding metal armored fiber cable, OM2, 50/125µm

    iCONEC-OCTS***A

    *Core multimode loose sleeve layer-stranding metal armored fiber cable, OM3, 50/125µm

    iCONEC-OCTS***N

    * Core multimode loose sleeve layer-stranding metal armored fiber cable, OM4, 50/125 µm

    iCONEC-OCTS***D

    * Core multimode loose sleeve layer-stranding metal armored fiber cable, OM5, 50/125µm
    • NOTES: In the product model, *** represents 3 digits. For example, the 2-core optical cable is 002.
    • Storage and operating temperature: -40°C to +70°C.
    • Applicable to: Pipeline, overhead, directly buried.
