    iCONEC®Outdoor Fibre Optic Cables iCONEC-OCTNZ

    Mainly applied to the connection between outdoor bulidings. It has some mechanical and environmental characteristics such as pressure resistance,tension resistance, corrosion resistance, high temperature and low tempera-ture resistance.

    Applications
    • The iCONEC-OCTNZ fiber optic cable is constructed with a 250µm optical fiber in a loose sleeve made from high-modulus materials and filled with waterproof compound.

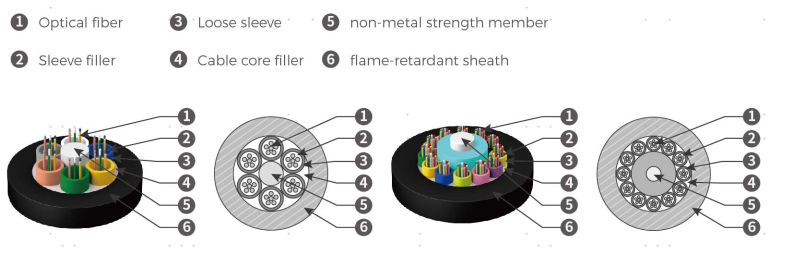

    • The center of the core is a piece of glass fiber reinforced plastic (FRP). The loose sleeve (and the filling rope) is twisted around the central strength member to form a compact and round cable core whose gaps are filled with water-blocking fillers. A flame retardant sheath is extruded on the outside of the cable core to form the cable.
    Product standards
    • The YOFC iCONEC-OCTNZ complies with YD/T 901 and IEC60794-1 standards.
    Characteristics
    • It has good mechanical properties and temperature characteristics.
    • The loose sleeve is made of materials with good hydrolysis resistance and high strength
    • The pipe is filled with special grease which can protect the optical fiber critically.
    • It has good compression resistance and flexibility;
    • The following measures are adopted to ensure the waterproof performance of fiber optic cables:
      • A single non-metal central strength member
      • The loose sleeve is filled with special waterproof compound
      • Complete filling of core
    Optical Properties

    Fiber Type

    Attenuation (+20°C)

    Bandwidth

    Numerical aperture

    cut off wavelength

    @850nm

    @1300nm

    @1310nm

    @1550nm

    @850nm

    @1300nm

    G.652

    －

    －

    ≤0.36dB/km

    ≤0.22dB/km

    －

    －

    －

    ≤1260nm

    G.655

    －

    －

    ≤0.40dB/km

    ≤0.23dB/km

    －

    －

    －

    ≤1450nm

    50/125µm

    ≤3.3dB/km

    ≤1.2dB/km

    －

    －

    ≥500MHz·km

    ≥500MHz·km

    0.200±0.015 NA

    －

    62.5/125µm

    ≤3.5dB/km

    ≤1.2dB/km

    －

    －

    ≥200MHz·km

    ≥500MHz·km

    0.275±0.015 NA

    －
    Structural Parameters

    Optical cable model (Increment by 2 fibers)

    Fiber count

    Sleeve count

    Filling rope count

    Reference cable weight (kg/km)

    Outer diameter (mm)

    Tensile strength for long/short term (N)

    Crush resistance for long/short term (N/100mm)

    Bending radius

    iCONEC-OCTNZ002-006

    2-6

    1

    5

    123

    10.7

    400/1000

    300/1000





    10D/20D

    iCONEC-OCTNZ008-012

    8-12

    2

    4

    123

    10.7

    iCONEC-OCTNZ014-018

    14-18

    3

    3

    123

    10.7

    iCONEC-OCTNZ020-024

    20-24

    4

    2

    123

    10.7

    iCONEC-OCTNZ026-030

    26-30

    5

    1

    123

    10.7

    iCONEC-OCTNZ032-036

    32-36

    6

    0

    123

    10.7

    iCONEC-OCTNZ002-006

    2-6

    1

    6

    131

    11

    600/1500

    iCONEC-OCTNZ008-012

    8-12

    2

    5

    131

    11

    iCONEC-OCTNZ014-018

    14-18

    3

    4

    131

    11

    iCONEC-OCTNZ020-024

    20-24

    4

    3

    131

    11

    iCONEC-OCTNZ026-030

    26-30

    5

    2

    131

    11

    iCONEC-OCTNZ032-036

    32-36

    6

    1

    131

    11

    iCONEC-OCTNZ038-042

    38-42

    7

    0

    131

    11

    iCONEC-OCTNZ054-048

    44-48

    4

    2

    137

    11.6

    iCONEC-OCTNZ050-060

    50-60

    5

    1

    137

    11.6

    iCONEC-OCTNZ062-072

    62-72

    6

    0

    137

    11.6

    iCONEC-OCTNZ002-006

    2-6

    1

    7

    155

    12.1

    1000/3000

    iCONEC-OCTNZ008-012

    8-12

    2

    6

    155

    12.1

    iCONEC-OCTNZ014-018

    14-18

    3

    5

    155

    12.1

    iCONEC-OCTNZ020-024

    20-24

    4

    4

    155

    12.1

    iCONEC-OCTNZ026-030

    26-30

    5

    3

    155

    12.1

    iCONEC-OCTNZ032-036

    32-36

    6

    2

    155

    12.1

    iCONEC-OCTNZ038-042

    38-42

    7

    1

    155

    12.1

    iCONEC-OCTNZ038-048

    44-48

    8

    0

    155

    12.1

    iCONEC- OCTNZ050-060

    50-60

    5

    3

    162

    12.5

    iCONEC- OCTNZ062-072

    62-72

    6

    2

    162

    12.5

    iCONEC- OCTNZ074-084

    74-84

    7

    1

    162

    12.5

    iCONEC- OCTNZ086-096

    86-96

    8

    0

    162

    12.5

    iCONEC- OCTNZ098-108

    98-108

    9

    1

    192

    13.8

    iCONEC- OCTNZ110-120

    110-120

    10

    0

    192

    13.8

    iCONEC- OCTNZ122-132

    110-132

    11

    1

    228

    15.3

    iCONEC- OCTNZ134-144

    134-144

    12

    0

    228

    15.3
    Product Model

    Product Model

    Product Description

    iCONEC-OCTNZ***S

    * Core single-mode loose sleeve layer-stranding non-metal reinforced non-armored flame-retardant fiber cable, G.652.D, 9/125µm

    iCONEC-OCTNZ***E

    * Core single-mode loose sleeve layer-stranding non-metal reinforced non-armored flame-retardant fiber cable, G.657.A2, 9/125µm

    iCONEC-OCTNZ***F

    * Core single-mode loose sleeve layer-stranding non-metal reinforced non-armored flame-retardant fiber cable, G.657.B3, 9/125µm

    iCONEC-OCTNZ***M

    * Core multimode loose sleeve layer-stranding non-metal reinforced non-armored flame-retardant fiber cable, OM1, 62.5/125µm

    iCONEC-OCTNZ***B

    * Core multimode loose sleeve layer-stranding non-metal reinforced non-armored flame-retardant fiber cable, OM2, 50/125µm

    iCONEC-OCTNZ***A

    * Core multimode loose sleeve layer-stranding non-metal reinforced non-armored flame-retardant fiber cable, OM3, 50/125µm

    iCONEC-OCTNZ***N

    * Core multimode loose sleeve layer-stranding non-metal reinforced non-armored flame-retardant fiber cable, OM4, 50/125µm

    iCONEC-OCTNZ***D

    *Core multimode loose sleeve layer-stranding non-metal reinforced non-armored flame-retardant fiber cable, OM5, 50/125µm
    • Remarks: In the product model, *** represents 3 digits. For example, the 2-core optical cable is 002.
    • Storage and operating temperature: -40°C to +70°C.
    • Applicable to: Pipeline, overhead
