Characteristic Impedance |
50 ± 1Ω |
---|---|
Return Loss for |
|
320 ‒ 480 MHz |
As Specified by Customer |
820 ‒ 960 MHz |
As Specified by Customer |
1700 ‒ 1880 MHz |
As Specified by Customer |
1880 ‒ 2180 MHz |
As Specified by Customer |
2300 ‒ 2500 MHz |
As Specified by Customer |
2500 ‒ 2700 MHz |
As Specified by Customer |
Other Bands Also Available on Request |
|
Attenuation |
See Table |
Velocity Factor |
0.88 |
Capacitance |
76 pF/m |
Maximum Frequency |
5100 MHz |
Max Power Rating |
See Table |
Peak RF Voltage Rating |
3.2 kV |
Peak Power Rating |
92 kW |
MHz Frequency |
100 |
450 |
800 |
900 |
1800 |
1900 |
2000 |
2200 |
2400 |
2600 |
2800 |
3000 |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Attenuation (Ambient temperature +20℃) dB/100m |
Typical |
1.12 |
2.46 |
3.34 |
3.56 |
5.20 |
5.36 |
5.51 |
5.81 |
6.11 |
6.39 |
6.66 |
6.93 |
Power Rating (Ambient temperature +40℃ inner conductor temperature+100℃)KW |
8.3 |
3.8 |
2.8 |
2.6 |
1.8 |
1.7 |
1.7 |
1.6 |
1.5 |
1.4 |
1.4 |
1.3 |
Crush Resistance |
Maximum Pulling Force |
Single Bending |
Repeated Bending |
Operating Temperature Range |
Installation Temperature Range |
---|---|---|---|---|---|
1.5Kg/mm |
1700N |
120 mm |
250 mm |
-55℃-+80℃ |
PE: -40℃ LSZH: -20℃ |

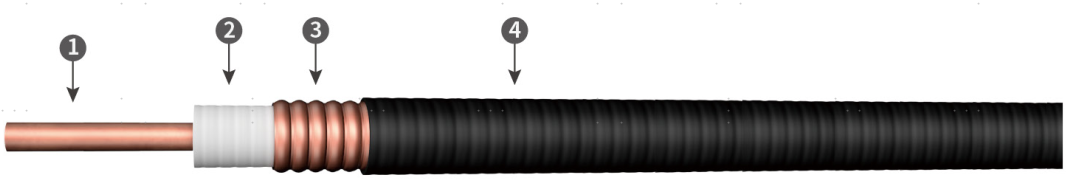

1.Smooth Copper Tube
2.Foamed PE Dielectric
3.Ring Corrugated Cu-tube
4.PE Jacket or LSZH
