    Optical Fibre Connector for Diameter-reduced Fibre

    YOFC provides, as per customer requirements, optical fibre connectors for optical fibres of which the outer diameter (OD) is small, with the connectors ranging from LC connectors to high-density MPO connectors. The connector can be customized in accordance with customer requirements such as precise wiring for effective connection of high-performance, high-density optical fibre systems.
    Applications
    • Wiring inside the frame, cable connection between the wiring area and the equipment area.
    • Infrastructure physical layer connection in data center
    • LAN cabling backbone systems
    • Backbone connection in building and campus
    Characteristics
    • Low insertion loss, high return loss
    • Customizable trunk cable and jumper lengths

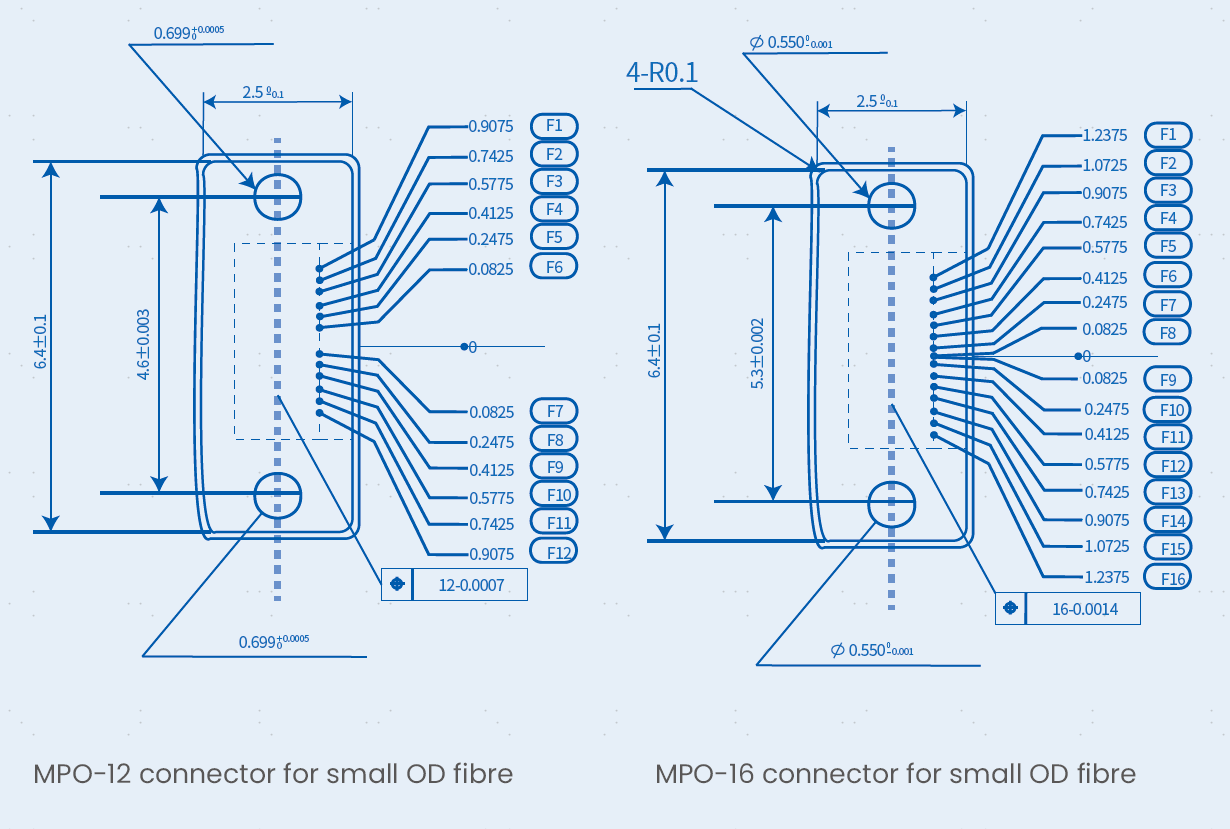

    Application Example

    Specifications

    Type LC connector for small OD fibre MPO connector for small OD fibre
    Average Insertion Loss@1310nm (dB) ≤ 0.15 ≤ 0.35
    Maximum Insertion Loss@1310nm (dB) ≤ 0.35 ≤ 0.5
    Return Loss  (dB) ≤ -50（UPC）≤-60（APC） ≤ -50（UPC） ≤ -60（APC）

    brochure
