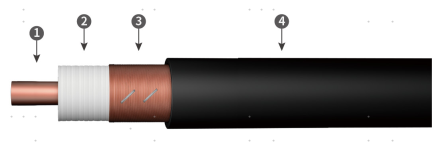

Cable Type: HLRCTCY(Z)-50-22M/H
1 Smooth Copper Tube
2 Foamed PE Dielectric
3 Longitudinally Wrapped Copper Strip
4 PE Jacket or LSZH
|
Characteristic Impedance |
Velocity |
Capacitance |
Insulation Resistance |
Insulation Voltage |
Jacket Spark Test Voltage |
|---|---|---|---|---|---|
|
50 ± 2 Ω |
0.88 |
76 pF/m |
＞5000 MΩ.km |
10000 V |
8000 V |
|
M Band |
Frequency (MHz) |
100~200 |
320~480 |
680~700 |
790~960 |
|---|---|---|---|---|---|
|
VSWR (Max) |
1.30 |
||||
|
H Band |
Frequency (MHz) |
790~960 |
1700~1900 |
1920~2025 |
2110~2200 |
2300~2500 |
2560~2620 |
|---|---|---|---|---|---|---|---|
|
VSWR (Max) |
1.30 |
1.40 |
|||||
|
|
Frequency (MHz) |
Attenuation dB/100m(+20℃) |
Coupling Loss (95%) dB |
|---|---|---|---|
|
M Band |
75 |
1.33 |
70 |
|
150 |
1.62 |
73 |
|
|
350 |
2.86 |
67 |
|
|
450 |
3.14 |
69 |
|
|
700 |
3.90 |
69 |
|
|
800 |
4.48 |
70 |
|
|
900 |
4.95 |
70 |
|
|
960 |
5.05 |
68 |
|
|
H Band |
700 |
3.52 |
80 |
|
800 |
4.10 |
75 |
|
|
900 |
4.48 |
75 |
|
|
960 |
4.57 |
72 |
|
|
1800 |
8.38 |
70 |
|
|
1900 |
8.48 |
66 |
|
|
2000 |
9.52 |
68 |
|
|
2200 |
10.95 |
70 |
|
|
2400 |
12.67 |
68 |
|
|
2600 |
13.24 |
63 |
|
|
2620 |
14.38 |
65 |
|
Weight |
Maximum Pulling Force |
Single Bending |
Repeated Bending |
Operating Temperature Range |
Installation Temperature Range |
|---|---|---|---|---|---|
|
500kg/km |
1300N |
250 mm |
300 mm |
-40℃ to +70℃ |
PE: -40℃ LSZH: -20℃ |
|
|
Inner |
Dielectric | Outer Conductor |
Jacket |
|---|---|---|---|---|
| 7/8" Radiating Type Leaky Coaxial Cable（M/H Band） |
9.0 mm |
23.2 mm |
23.5 mm |
27.5 mm |
| 7/8" Radiating Type Leaky Coaxial Cable（HK Band） |
9.0 mm |
23.2 mm |
23.5 mm |
27.5 mm |
| 1/2" Radiating Type Leaky Coaxial Cable（H Band） |
4.8 mm |
12.2 mm |
13.2 mm |
15.8 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（M/HBand） |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（HK Band） |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1 1/4”Radiating Type Leaky Coaxial Cable (L Band) |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1/2" Radiating Type Le akage Cable For Coal Mine |
4.8 mm |
12.5 mm |
13.1 mm |
15.6 mm |
| 7/8" Radiating Type Leakage Cable For Coal Mine |
9.0 mm |
22.8 mm |
23.5 mm |
27.2 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable (Horizontal polarization) |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Z Band) |
17.6 mm |
43.0 mm |
43.6 mm |
47.5 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable |
17.6 mm |
43.0 mm |
43.6 mm |
47.5 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Train System Ⅲ Type) |
17.6 mm |
43.0 mm |
43.6 mm |
47.5 mm |
