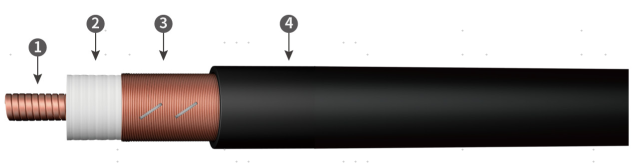

Cable Type: HLRHTCYZ-50-42Z
1 Corrugated Cu-tube
2 Foamed PE Dielectric
3 Longitudinally Wrapped Copper Strip
4 PE Jacket or LSZH
1 5/8" Radiating Type Leaky Coaxial Cable（Z Band）
Details
Specification
Documents
Cable Type
Electrical Characteristics at +20℃
|
Characteristic Impedance |
Velocity |
Capacitance |
Insulation Resistance |
Insulation Voltage |
Jacket Spark Test Voltage |
|---|---|---|---|---|---|
|
50 ± 2 Ω |
0.88 |
76 pF/m |
＞10000 MΩ.km |
15000 V |
10000 V |
VSWR
|
Frequency (MHz) |
75-150 |
330-480 |
680-700 |
806-934 |
1350-1450 |
1785-1805 |
|---|---|---|---|---|---|---|
|
VSWR (Max) |
1.30 |
|||||
Attenuation and Coupling Loss
|
Frequency (MHz) |
Attenuation dB/100m(+20℃) Max |
Coupling Loss (95%) dB |
|---|---|---|
|
75 |
0.60 |
70 |
|
100 |
0.70 |
77 |
|
150 |
0.85 |
81 |
|
350 |
1.30 |
80 |
|
450 |
1.55 |
78 |
|
700 |
2.00 |
77 |
|
800 |
2.15 |
72 |
|
900 |
2.30 |
70 |
|
960 |
2.40 |
72 |
|
1400 |
3.20 |
66 |
|
1800 |
4.00 |
66 |
Note: Attenuation tolerance 5%; Coupling Loss tolerance ±5dB
Mechanical Characteristics
| Weight | Maximum Pulling Force |
Single Bending |
Repeated |
Operating Temperature Range |
Installation Temperature Range |
|---|---|---|---|---|---|
|
830kg/km |
2500N |
400 mm |
500 mm |
-55℃ to +85℃ |
PE: -40℃ LSZH: -20℃ |
Standard Test Conditions
|
Test Methods For |
Test Methods For Smoke Index |
Test Methods For |
Test Methods For Attenuation |
Test Methods For Coupling Loss |
|---|---|---|---|---|
|
IEC 60332-1 |
IEC 61034 |
IEC 60754-1/IEC 60754-2 |
IEC 61196-4 |
IEC 61196-4 |
Polarization Method
|
70-150MHz |
Orthogonal polarization |
|---|---|
|
330-1850MHz |
Vertical polarization |
Management Commitment/Verification
| Passed | ||
|---|---|---|
|
ISO 9001 |
ISO 14001 |
ISO 45001 |
Specifications
|
|
Inner |
Dielectric | Outer Conductor |
Jacket |
|---|---|---|---|---|
| 7/8" Radiating Type Leaky Coaxial Cable（M/H Band） |
9.0 mm |
23.2 mm |
23.5 mm |
27.5 mm |
| 7/8" Radiating Type Leaky Coaxial Cable（HK Band） |
9.0 mm |
23.2 mm |
23.5 mm |
27.5 mm |
| 1/2" Radiating Type Leaky Coaxial Cable（H Band） |
4.8 mm |
12.2 mm |
13.2 mm |
15.8 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（M/HBand） |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable（HK Band） |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1 1/4”Radiating Type Leaky Coaxial Cable (L Band) |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1/2" Radiating Type Le akage Cable For Coal Mine |
4.8 mm |
12.5 mm |
13.1 mm |
15.6 mm |
| 7/8" Radiating Type Leakage Cable For Coal Mine |
9.0 mm |
22.8 mm |
23.5 mm |
27.2 mm |
| 1 1/4" Radiating Type Leaky Coaxial Cable (Horizontal polarization) |
13.1 mm |
33.0 mm |
33.5 mm |
37.0 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Z Band) |
17.6 mm |
43.0 mm |
43.6 mm |
47.5 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable |
17.6 mm |
43.0 mm |
43.6 mm |
47.5 mm |
| 1 5/8" Radiating Type Leaky Coaxial Cable (Train System Ⅲ Type) |
17.6 mm |
43.0 mm |
43.6 mm |
47.5 mm |
