Network Cabinet

Network cabinets are platforms providing physical protection and support for IT equipment in data centers and low-current equipment rooms. Rigid in physical structure, offering sufficient cable management space, adequate power supplies, and good thermal management.
Product standards
  • Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7 and GB/T3047.2-92 standards, and ETSI standard.
Characteristics
  • Elegant appearance, excellent craftmanship, well-thought-out dimensions.
  • Single flat hexagonal mesh front door, double flat hexagonal mesh rear door; mesh hole ventilation rate up to 75%.
  • Aluminized zinc square-hole strips and mounting beam, automatically equipotential upon installation.
  • Trapezoid mounting beam compliant with mechanical principles for increased load-bearing capacity.
  • Adequate supply of ingress holes in upper frame, allows flexible cabling, maintaining separation between low and high-current cabling.
  • Ingress holes sufficient for 1,000 CAT6 cable.
  • Multiple front and rear door solutions; both front and rear doors can be replaced with double doors.
  • Detachable packages; 1/2-2/3 packing volume reduction.
  • Equipped with two fan modules as standard, for easy repair; stock a single fan model for use in all kinds of large cabinets.

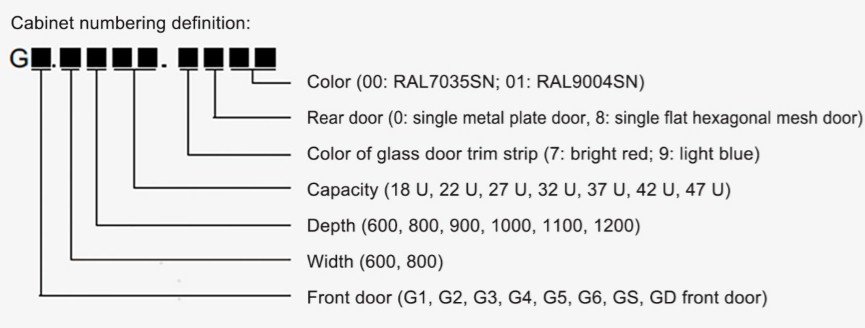

The order information

Type Capacity (U) Width (mm) Depth (mm) Installation Depth (mm) Height

GX.6642.XXXX

42

600

600

361

2055

GX.6842.XXXX

800

561

GX.6942.XXXX

900

661

GX.6042.XXXX

1000

736

GX.6142.XXXX

1100

736

GX.6242.XXXX

1200

736

GX.8642.XXXX

800

600

308

GX.8842.XXXX

800

508

GX.8942.XXXX

900

608

GX.8042.XXXX

1000

708

GX.8142.XXXX

1100

733

GX.8242.XXXX

1200

733

GX.6647.XXXX

47

600

600

361

2277

GX.6847.XXXX

800

561

GX.6947.XXXX

900

661

GX.6047.XXXX

1000

736

GX.6147.XXXX

1100

736

GX.6247.XXXX

1200

736

GX.8647.XXXX

800

600

308

GX.8847.XXXX

800

508

GX.8947.XXXX

900

608

GX.8047.XXXX

1000

708

GX.8147.XXXX

1100

733

GX.8247.XXXX

1200

733



Specifications

Specifications Parameter
Operating Temperature

-40℃ to +60℃

Ambient Humidity

≤95%RH(+40℃)

Square-hole Strip and Mounting Beam Material

Anti-fingerprint aluminum-coated zinc sheet
Other Plates’Material Quality SPCC cold-rolled sheet
Plate Thickness Square-hole strip: 2.0 mm, mounting beam: 1.5 mm, other: 1.2 mm
Surface Finish Degreased, vitrified, and electrostatically sprayed

Protection Grade

IP20

Rack Load-bearing Capacity

≥ 800 Kg
