Wall-mounted Network Cabinet

Wall-mounted network cabinets are platforms providing physical protection and supporting for IT equipment in central office and weak electricity equipment rooms. Rigid in physical structure, offering sufficient cable management space, adequate power supplies, and good thermal management.
Product standards
  • Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7 and GB/T3047.2-92 standards, and ETSI standard.
Characteristics
  • Integrated welded structure, stable and rigid.
  • Fast-opening side door, easy operation and maintenance.
  • Knock-out holes in top, bottom, and back sides, convenient for cable passing through.
  • Suitable to wall and floor mounting, optional accessories for floor mounting.
  • Standard 19" rack.
  • Fast wall mounting.
  • Modular design, all parts are interchangeable for products in the same type series.
  • Right/left opening structure are available for front door.

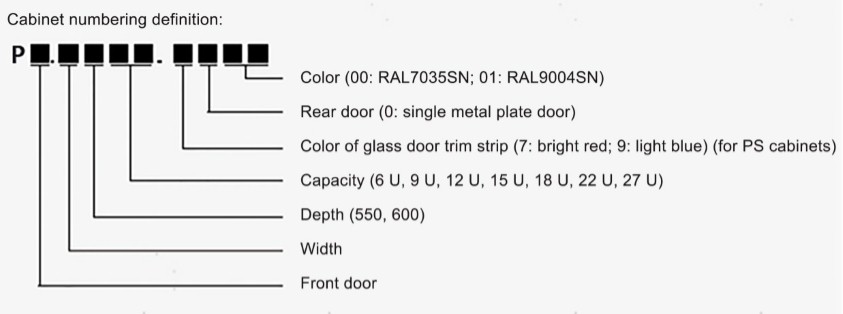

The order information

Type

Capacity (U)

Width (mm)

Depth (mm)

Height

PX.6412.XXXX

12

600

450

635

PX.6612.XXXX

600

PX.6418.XXXX

18

600

450

902

PX.6618.XXXX

600

PX.6422.XXXX

22

600

450

1079

PX.6622.XXXX

600

PX.6427.XXXX

27

600

450

1302

PX.6627.XXXX

600

Specifications

Specifications Parameter
Operating Temperature

-40℃ to +60℃

Ambient Humidity

≤95% RH(+40℃)

Material of Plate

Quality SPCC cold-rolled sheet

Plate Thickness

Square-hole strip: 1.5 mm, side door: 0.8 mm, others: 1.2 mm

Surface Technology

Degreased, vitrified, and electrostatically sprayed

Protection Grade

IP20

Max Load of Cabinet

≥ 60 kg
