Server Cabinet

Server cabinets are platforms providing physical protection and supporting for IT equipment in central office and weak electricity equipment rooms. Rigid in physical structure, offering sufficient cable management space, adequate power supplies, and good thermal management.
Product standards
  • Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7 and GB/T3047.2-92 standards, and ETSI standard.
Characteristics
  • Elegant appearance, excellent craftmanship, well-thought-out dimensions.
  • Single flat hexagonal mesh front door, double flat hexagonal mesh rear door; mesh hole ventilation rate up to 75%.
  • Aluminized zinc square-hole strips and mounting beam, automatically equipotential upon installation.
  • Three-section bottom plate; middle cover can be opened when necessary.
  • Adequate supply of ingress holes in upper cover, allows flexible cabling, maintaining separation between weak and strong electricity cabling.
  • Cable ports sufficient for 1,000 CAT6 cable.
  • Three-section fast-opening side door; each section can be opened separately.
  • Rolled 9-fold material with load-bearing capacity in excess of 1,000 kg.
  • Equipped with two fan modules as standard; for easy maintenance, stock a single fan model for use in all kinds of large cabinets.

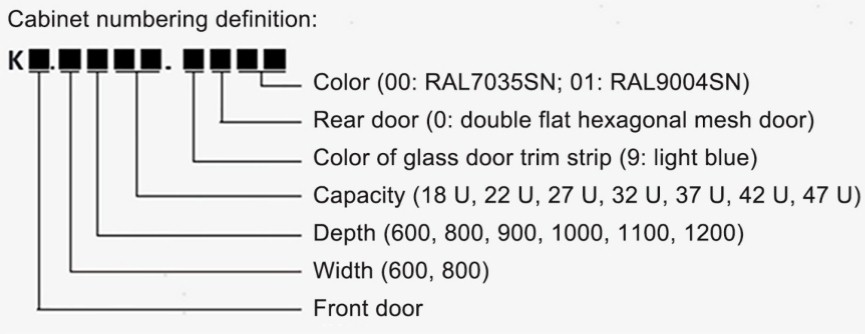

The order information

Type

Capacity (U)

Width (mm)

Depth (mm)

Installation Depth (mm)

Height

KX.6642.90XX

42

600

600

361

2028

KX.6842.90XX

800

561

KX.6942.90XX

900

661

KX.6042.90XX

1000

736

KX.6142.90XX

1100

736

KX.6242.90XX

1200

736

KX.8642.90XX

800

600

308

KX.8842.90XX

800

508

KX.8942.90XX

900

608

KX.8042.90XX

1000

708

KX.8142.90XX

1100

733

KX.8242.90XX

1200

733

KX.6647.90XX

47

600

600

361

2253

KX.6847.90XX

800

561

KX.6947.90XX

900

661

KX.6047.90XX

1000

736

KX.6147.90XX

1100

736

KX.6247.90XX

1200

736

KX.8647.90XX

800

600

308

KX.8847.90XX

800

508

KX.8947.90XX

900

608

KX.8047.90XX

1000

708

KX.8147.90XX

1100

733

KX.8247.90XX

1200

733



Specifications

Specifications Parameter
Operating Temperature

-40℃ to +60℃

Ambient Humidity

≤95% RH(+40℃)

Material of Square-hole Strip and Mounting

Anti-fingerprint aluminum-coated zinc sheet

Material of Other Plates

High quality SPCC cold-rolled sheet

Plate Thickness

Rack board: 2.0 mm, mounting beam: 1.5 mm, other: 1.2 mm

Surface Finish

Degreased, vitrified, and electrostatically sprayed

Protection Grade

IP20

Rack Load-bearing Capacity

≥ 1000 kg
