- Comply with ISO/IEC11801&ANSI/TIA-568.2-DCat.6&UL Subject 444&YD/T1019 and other related standards.
- Comply with RoHS 2.0 and European Directive 2011/65/EU RoHS Compliance
- LSZH Cable: Flame retardant property conforms to: IEC60332-1 and IEC60332-3C; Toxicity standard: IEC60754-1; Acid gas concentration standard: IEC60754-2 smoke concentration standard: IEC61034-2
iCONEC®Copper Cable Solutions Cat.6 STP
Cat.6 STP is mainly used for connections in building horizon-tal cables, EDA, HDA and other areas of the data center.
Details
Product standards
Characteristics
- Cat.6 STP features high-quality electrical and mechanical performance that exceeds the requirements of ISO/IEC11801 and ANSI/TIA-568.2-D standards.
- Compact cable design.
- Data twisted pairs are suitable for structured cabling, and can be used to transmit digital signals or analog voice, video and data signals.
- Applicable to the Power over Ethernet.
Material and Structural Dimensions
- Conductor: Solid copper conductor

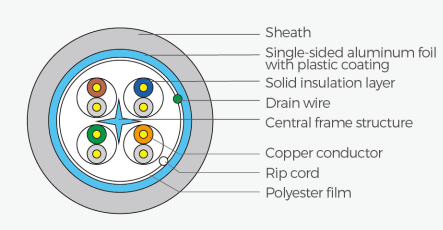

- Shielding: F/UTP, overall shielding with aluminum foil,centralcross frame structure.
- Insulation: Foamed PE
- Sheath: LSZH, CM, CMR, CMP and other flame-retardant classifications are provided.
- The central frame structure separates the twisted pairs to improve crosstalk performance.
- Lower distortion and latency distinguish its superior perfor-mance in the gigabit Ethernet.
Main Technical Parameters
|
Content |
Technical Index |
|---|---|
|
Maximum resistance imbalance |
2% |
|
Insulation resistance |
>5000MΩ·km |
|
Characteristic impedance |
4-250MHz 100±15Ω |
|
Delay skew |
≤ 45ns/100m |
|
Operation Temperature |
Installation Temperature: -20°C to +60°C Operation Temperature: -40°C to +70°C Cold bending: -20°C×4h no crack |
|
Permissible bending radius during installation |
Not less than 8 times the outer diameter of the twisted pair. |
|
Bending radius |
Static for 10 times the cable diameter, dynamic for 20 times the cable diameter. |
|
Maximum tension |
400N |
|
Maximum conductor resistance |
85Ω/km(23AWG) |
|
Insulating material |
HDPE |
|
Minimum insulation resistance Dielectric strength |
100MΩ/km 500Vac/1min |
|
Package |
305m/box |
Product Model
|
Product Model |
Product Description |
|---|---|
|
iCONEC-CCC6FH13IW004 |
Cat 6 STP, F/UTP, LSZH-1, 23AWG, White, 305m/box. |
|
iCONEC-CCC6FCM3BU004 |
Cat 6 STP, F/UTP, CM, 23AWG, Blue, 305m/box. |
|
iCONEC-CCC6FCR3BU004 |
Cat 6 STP, F/UTP, CMR, 23AWG, Blue, 305m/box. |
|
iCONEC-CCC6FVC3BU004 |
Cat 6 STP, F/UTP, PVC, 23AWG, Blue, 305m/box. |
|
iCONEC-CCC6FH33IW004 |
Cat 6 STP, F/UTP, LSZH-3, 23AWG, White, 305m/box. |
