iCONEC®Copper Cable Solutions Cat.6A STP-YOFC

Cat.6A STP is mainly used for connections in building horizontal cables, EDA, HDA and other areas of the data center.

Product standards

Comply with ISO / IEC11801&ANSI/TIA-568.2-D Cat.6A&UL Subject 444&YD/T1019 and other related standards.
Comply with RoHS 2.0 and European Directive 2011/65/EU RoHS Compliance
LSZH Cable: Flame retardant property conforms to: IEC60332-1 and IEC60332-3C; Toxicity standard: IEC60754-1; Acid gas concentration standard: IEC60754-2 smoke concentration standard: IEC61034-2

Characteristics

Material and Structural Dimensions

Conductor: Solid copper conductor

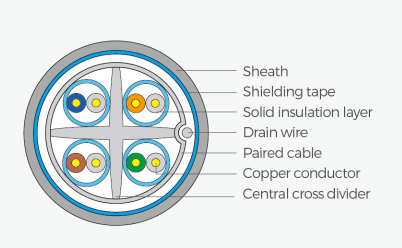

Shielding: F/UTP, overall shielding with aluminum foil, central cross frame structure. S/FTP, general shielding with screen mesh and individual shielding with aluminum foil for each pair.
Insulation: Foamed PE
Sheath: LSZH, CM, CMR, CMP and other ﬂame-retardant classiﬁcations are provided.

Main Technical Parameters

Content	Technical Index
Maximum resistance imbalance	2%
Insulation resistance	>5000Mfi·km
Characteristic impedance	4-100MHz 100±15fi 101-250MHz 100±20fi 251-500MHz 100±25fi
Delay skew	≤ 45ns/100m
Operation Temperature	Installation Temperature: -20°C to +60°C Operation Temperature: -40°C to +70°C Cold bending: -20°C×4h no crack
Permissible bending radius during installation	8 times the outer diameter of the twisted pair.
Bending radius	Static for 10 times the cable diameter, dynamic for 20 times the cable diameter.
Maximum tension	400N
Maximum conductor resistance	75fi/km(23AWG) 95fi/km(24AWG)
Insulating material	HDPE
Minimum insulation resistance	100Mfi/km
Dielectric strength	500Vac/1min
Package	305m/box
Content	Technical Index
Maximum resistance imbalance	2%
Insulation resistance	>5000Mfi·km
Characteristic impedance	4-100MHz 100±15fi 101-250MHz 100±20fi 251-500MHz 100±25fi
Delay skew	≤ 45ns/100m
Operation Temperature	Installation Temperature: -20°C to +60°C Operation Temperature: -40°C to +70°C Cold bending: -20°C×4h no crack
Permissible bending radius during installation	8 times the outer diameter of the twisted pair.
Bending radius	Static for 10 times the cable diameter, dynamic for 20 times the cable diameter.
Maximum tension	400N
Maximum conductor resistance	75fi/km(23AWG) 95fi/km(24AWG)
Insulating material	HDPE
Minimum insulation resistance	100Mfi/km
Dielectric strength	500Vac/1min
Package	305m/box

Product Model

Product Model	Product Description
iCONEC-CC6AFH13IW004	Cat 6a STP, F/UTP, LSZH-1, 23AWG, White, 305m/axis.
iCONEC-CC6AFCM3BU004	Cat 6a STP, F/UTP, CM, 23AWG, Blue, 305m/axis.
iCONEC-CC6AFCR3BU004	Cat 6a STP, F/UTP, CMR, 23AWG, Blue, 305m/axis.
iCONEC-CC6AFVC3BU004	Cat 6a STP, F/UTP, PVC, 23AWG, Blue, 305m/axis.
iCONEC-CC6AFH33IW004	Cat 6a STP, F/UTP, LSZH-3, 23AWG, White, 305m/axis.
iCONEC-CC6ASH13IW004	Cat 6a STP, S/FTP, LSZH-1, 23AWG, White, 305m/box.
iCONEC-CC6ASCM3BU004	Cat 6a STP, S/FTP, CM, 23AWG, Blue, 305m/box.
iCONEC-CC6ASCR3BU004	Cat 6a STP, S/FTP, CMR, 23AWG, Blue, 305m/box.
iCONEC-CC6ASVC3BU004	Cat 6a STP, S/FTP, PVC, 23AWG, Blue, 305m/box.
iCONEC-CC6ASH33IW004	Cat 6a STP, S/FTP, LSZH-3, 23AWG, White, 305m/box.
