iCONEC®Copper Cable Solutions Cat.5e STP-YOFC

Cat.5e STP is mainly used for connections in building horizon-tal cables.

Product standards

Comply with ANSI/TIA 568.2-D Cat.5e, ISO/IEC 11801, UL, Subject 444 & YD/T1019 and other relevant standards.
Comply with RoHS 2.0 and European Directive 2011/65/EU RoHS Compliance.
LSZH Cable: Flame retardant property conforms to: IEC60332-1 and IEC60332-3C; Toxicity standard: IEC60754-1; Acid gas concentration standard: IEC60754-2 smoke concentration standard: IEC61034-2.

Characteristics

Cat.5e STP features high-quality electrical and mechanical performance that exceeds the requirements of ISO/IEC11801 and ANSI/TIA-568.2-D standards.
General shielding with aluminum foil. With its lightweight structure and excellent shielding performance, it can be used for 100MHz duplex transmission systems.
Data twisted pairs are suitable for structured cabling, and can be used to transmit digital signals or analog voice, video and data signals.
Applicable to the Power over Ethernet.

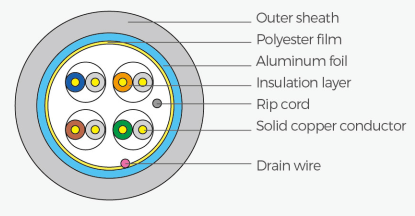

Material and Structural Dimensions

Conductor: 24AWG solid copper conductor.
Shielding: F/UTP, overall shielding with aluminum foil.
Insulation: Solid PE.
Sheath: LSZH, CM, CMR, CMP and other ﬂame-retardant classiﬁcations are provided.

Main Technical Parameters

Content	Technical Index
Maximum resistance imbalance	2%
Insulation resistance	>5000MΩ·km
Characteristic impedance	4-100MHz 100±15Ω
Delay skew	≤ 45ns/100m
Operation Temperature	Installation Temperature: -20°C to +60°C Operation Temperature: -40°C to +70°C Cold bending: -20°C×4h no crack
Permissible bending radius during installation	Not less than 8 times the outer diameter of the twisted pair.
Bending radius	Static for 10 times the cable diameter, dynamic for 20 times the cable diameter.
Maximum tension	400N
Maximum conductor resistance	95Ω/km (LSZH-1) 148Ω/km (CM, PVC)
Insulating material	HDPE
Minimum insulation resistance	100MΩ/km
Dielectric strength	500Vac/1min
Package	305m/box

Product Model

Product Model	Product Description
iCONEC-CC5EFH14IW004	Cat 5e STP, F/UTP, LSZH-1, 24AWG, White, 305m/box.
iCONEC-CC5EFCM4BU004	Cat 5e STP, F/UTP, CM, 24AWG, Blue, 305m/box.
iCONEC-CC5EFCR4BU004	Cat 5e STP, F/UTP, CMR, 24AWG, Blue, 305m/box.
iCONEC-CC5EFVC4BU004	Cat 5e STP, F/UTP, PVC, 24AWG, Blue, 305m/box.
iCONEC-CC5EFH14IW004	Cat 5e STP, F/UTP, LSZH-1, 24AWG, White, 305m/box.
