- Comply with ANSI/TIA 568.2-D Cat.5e, ISO/IEC 11801, UL, Subject 444 & YD/T1019 and other related standards.
- Comply with RoHS 2.0 and European Directive 2011/65/EU RoHS Compliance.
- LSZH Cable: Flame retardant property conforms to: IEC60332-1 and IEC60332-3C; Toxicity standard: IEC60754-1; Acid gasconcentration standard: IEC60754-2 smoke concentration standard: IEC61034-2
iCONEC®Copper Cable Solutions Cat.5e UTP
Cat.5e UTP is mainly used for connections in building horizontal cables.
Details
Product standards
Characteristics
- Cat.5e UTP features high-quality electrical and mechani-cal performance that exceeds the requirements of ISO/IEC11801 and ANSI/TIA-568.2-D standards.
- Data twist-ed pairs are suitable for structured cabling, and can be used to transmit digital signals or analog voice, video and data signals.
- Suitable for all ICT network applications that comply with EN50173-1 and ISO/IEC11801 standards.
- Applicable to the Power over Ethernet.

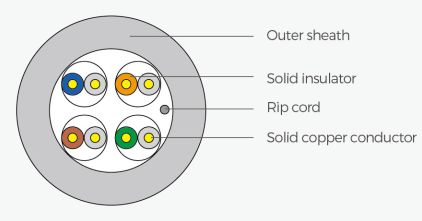

Material and Structural Dimensions
- Conductor: 24AWG solid copper conductor
- Insulation: Solid PE
- Sheath: LSZH, CM, CMR, CMP and other flame-retardant classifications are provided.
- The bandwidth exceeds the required standard 100MHz,andit can meet the network transmission requirements for the 100M Ethernet.
Main Technical Parameters
|
Content |
Technical Index |
|---|---|
|
Maximum resistance imbalance |
2% |
|
Insulation resistance |
>5000MΩ·km |
|
Characteristic impedance |
4-100MHz 100±15Ω |
|
Delay skew |
≤ 45ns/100m |
|
Operation Temperature |
Installation Temperature: -20°C to +60°C Operation Temperature: -40°C to +70°C Cold bending: -20°C×4h no crack |
|
Permissible bending radius during installation |
Not less than 8 times the outer diameter of the twisted pair. |
|
Bending radius |
Static for 10 times the cable diameter, dynamic for 20 times the cable diameter. |
|
Maximum tension |
400N |
|
Maximum conductor resistance |
75Ω/km (23AWG, LSZH-1, CM) 89Ω/km (23AWG, LSZH-3, PVC) 93.8Ω/km (24AWG, LSZH-1, CM) |
|
Insulating material |
HDPE |
|
Minimum insulation resistance |
100MΩ/km |
|
Dielectric strength |
500Vac/1min |
|
Package |
305m/box |
Product Model
|
Product Model |
Product Description |
|---|---|
|
iCONEC-CC5EUH14IW004 |
Cat 5e UTP, UTP, LSZH-1, 24AWG, White, 305m/box. |
|
iCONEC-CC5EUCM4BU004 |
Cat 5e UTP, UTP, CM, 24AWG, Blue, 305m/box. |
|
iCONEC-CC5EUCR4BU004 |
Cat 5e UTP, UTP, CMR, 24AWG, Blue, 305m/box. |
|
iCONEC-CC5EUVC4BU004 |
Cat 5e UTP, UTP, PVC, 24AWG, Blue, 305m/box |
|
iCONEC-CC5EUH14IW004 |
Cat 5e UTP, UTP, LSZH-1, 24AWG, White, 305m/box. |
